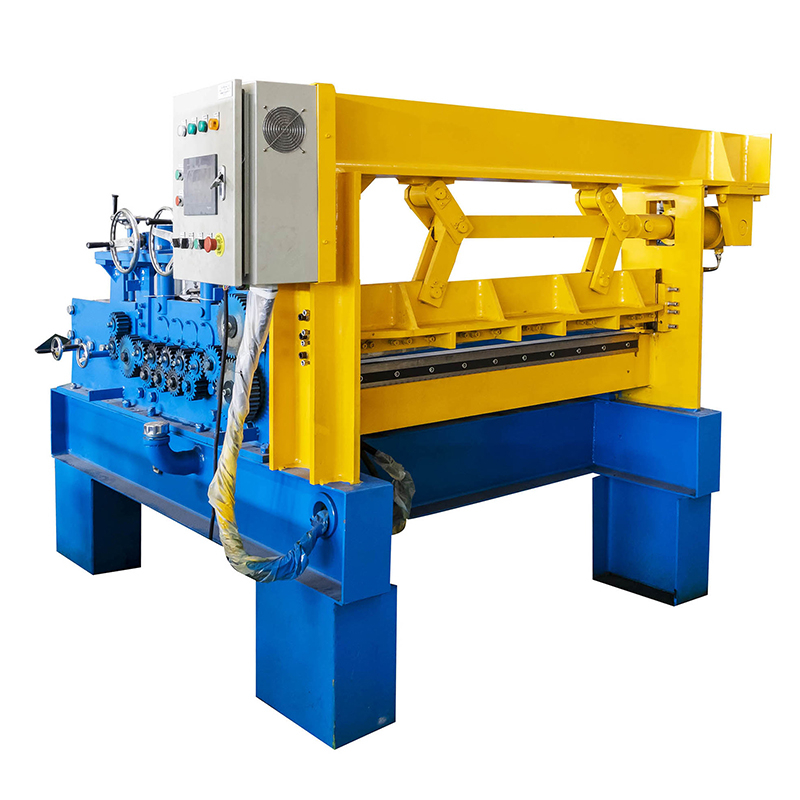

The cut-to-length machine is an auxiliary unit for roll forming or folding machines, designed to cut coils into sheets of customized widths and lengths. It offers several advantages, including low noise, stable performance, easy operation, and an attractive design
1600MM
Material Width
5-20m/min
Production Speed
15KW
Motor Power
Specification | Details |
Dimension | 3100 × 2500 × 1500 mm |
Weight | 5000 KGS |
Hydraulic Motor Power | 15 KW |
Voltage | 380V / 50HZ / 3PH |
Working Speed | 5 m/min, 15 m/min, 20 m/min (adjustable) |
Thickness | 0.5 – 2.0 mm |
Max. Width | 1600 mm |
Cutting Tolerance | ±2 mm within 2 m length; ±2 mm diagonal within 2 m |

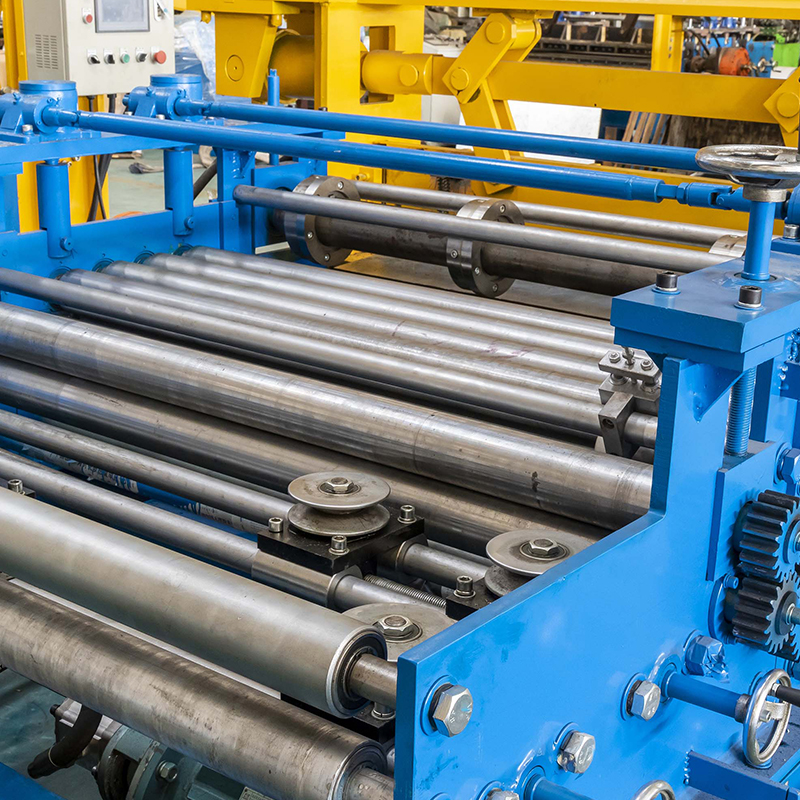

Flattening Roller Material | High grade 45# forged steel, heat-treated, plated & polished |
Flattening Roller Size | 85 mm, total 11 pcs |
Slitting Rollers | 2 pcs |
Slitting Blades | 6 sets |
Sprocket Wheel | 45# steel, high-frequency quenched |
Cut-off System | Hydraulic cutting device |
Cutting Blade Material | Cr12 mold steel, quenched treatment |
Machine Color | Customized according to customer request |
Usage | Flattening, slitting, and cutting aluminum, zinc, and copper |
Testing Requirement | Buyer must provide sufficient materials for machine testing |

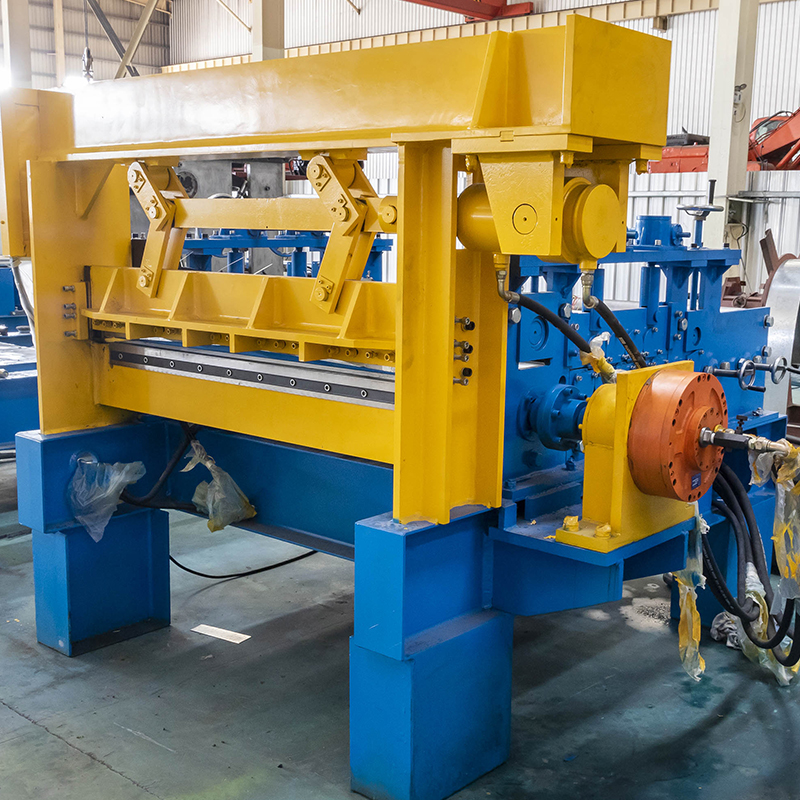

Metal Coil Cut-to-Length Machine
The metal coil cut-to-length machine provides a simple and efficient solution for cutting steel coils into sheets of various lengths according to preset program parameters. The operation process is as follows:
1. Load the steel coil onto the decoiler mandrel.
2. Feed the material through the guiding device and convey it to the cutting frame.
3. Set the desired cutting length and the number of pieces.
4. The machine will automatically cut the metal sheets based on the programmed settings.
Features of Cut-to-Length Machine
The cut-to-length machine integrates feeding, conveying, and cutting into a single automated system. The shafts are made of high-grade No.45 carbon forged steel, enhancing their overall mechanical strength. The cutting blades are crafted from Cr12 mold steel with quenched treatment, providing excellent hardness and durability for precise coil cutting. The entire process is fully automated and controlled by a PLC system, ensuring efficiency and accuracy.
