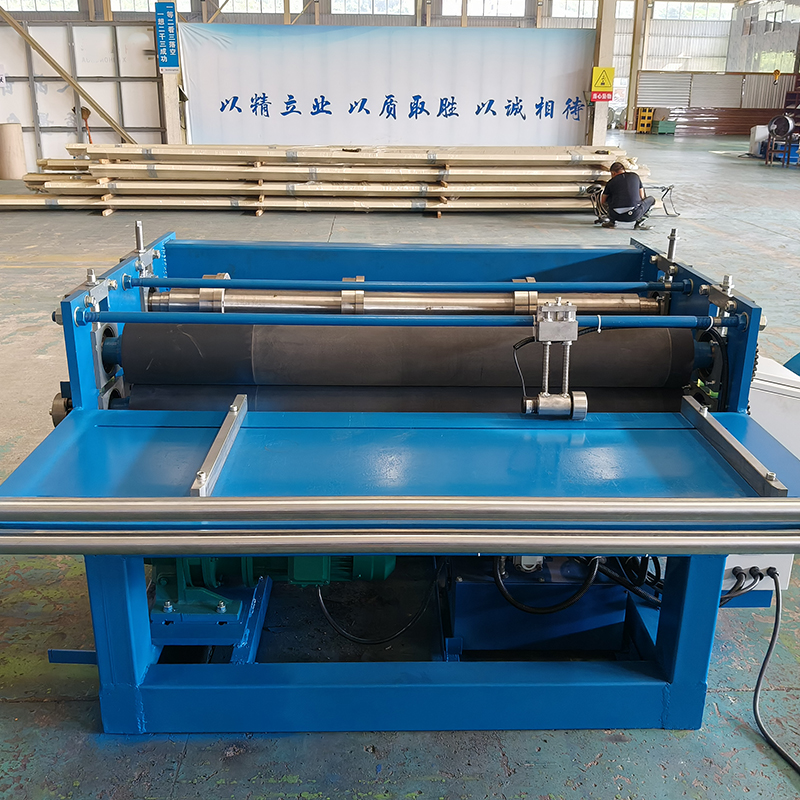

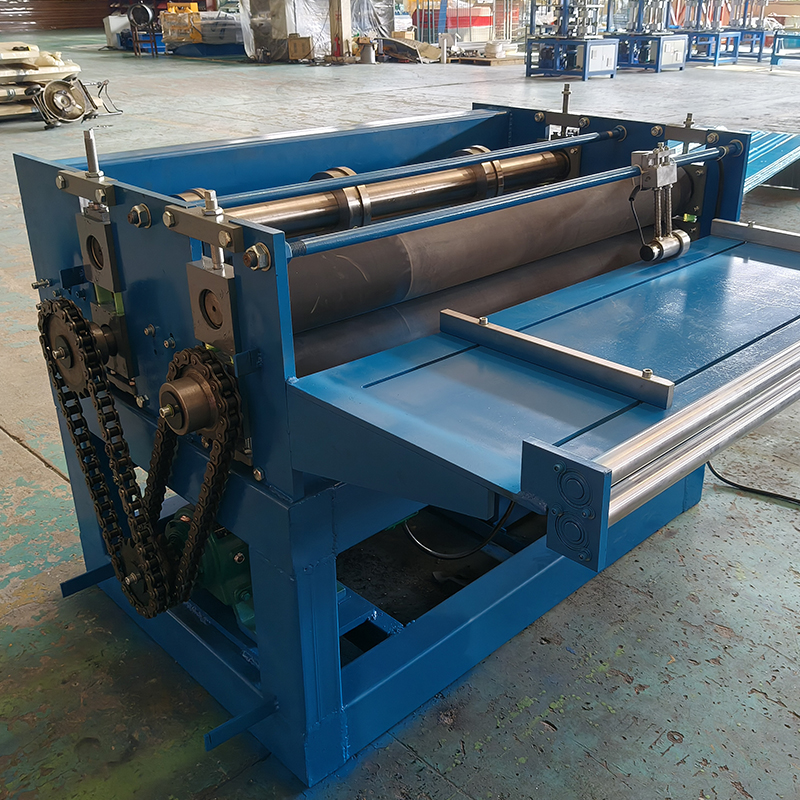

A metal slitting machine is an automated system used to cut wide steel coils into several narrower coils. It is an essential piece of equipment for steel coil processors and metal profile producers. With high precision, sharp circular blades rotate at controlled speeds to ensure clean and accurate slitting of steel, stainless steel, aluminum, and various other metal alloys.
200-1200MM
Material Width
17m/min
Production Speed
3KW
Motor Power
Specification | Details |
Size | 1700 × 1100 × 1100 mm |
Weight | 550 KGS |
Motor Power | 3 KW |
Voltage | 380V / 60HZ / 3PH |
Working Speed | 17 m/min |
Feeding Material Width | 200 – 1200 mm |
Thickness for Steel | 0.3 – 1.0 mm (Material: PPGI, GI Steel) |
Roller Material | High grade 45# forged steel, hard chrome plated, polished rollers |
Shaft Material | High grade 45# forged steel |
Machine Frame Material | Fine welded structural steel |
Roofing Material | Color steel, Galvanized steel |
Steel Coil Slitting Machine Features
Integrating a slitting machine into steel coil processing offers several key advantages:
· Cost Efficiency: Slitting is much faster and more economical per pound compared to sheet cutting or sawing methods, which often require higher labor, longer processing time, and frequent blade replacement.
· Customization: Precision rotary slitters deliver coils in specific widths, perfectly suited for roll forming applications and various component size requirements.
· High Accuracy: Tight width and edge tolerances ensure that slit coils can be fed directly into stamping, forming, or machining processes without additional adjustments.
· Superior Finish: Smooth, clean-cut edges eliminate distortion and saw marks, allowing the use of thinner gauges while also enhancing corrosion resistance.
