0.5-1.0mm
Thickness Range
30m/min
Production Speed
7.0m × 1.2m × 1.5m
Dimensions L x W x H

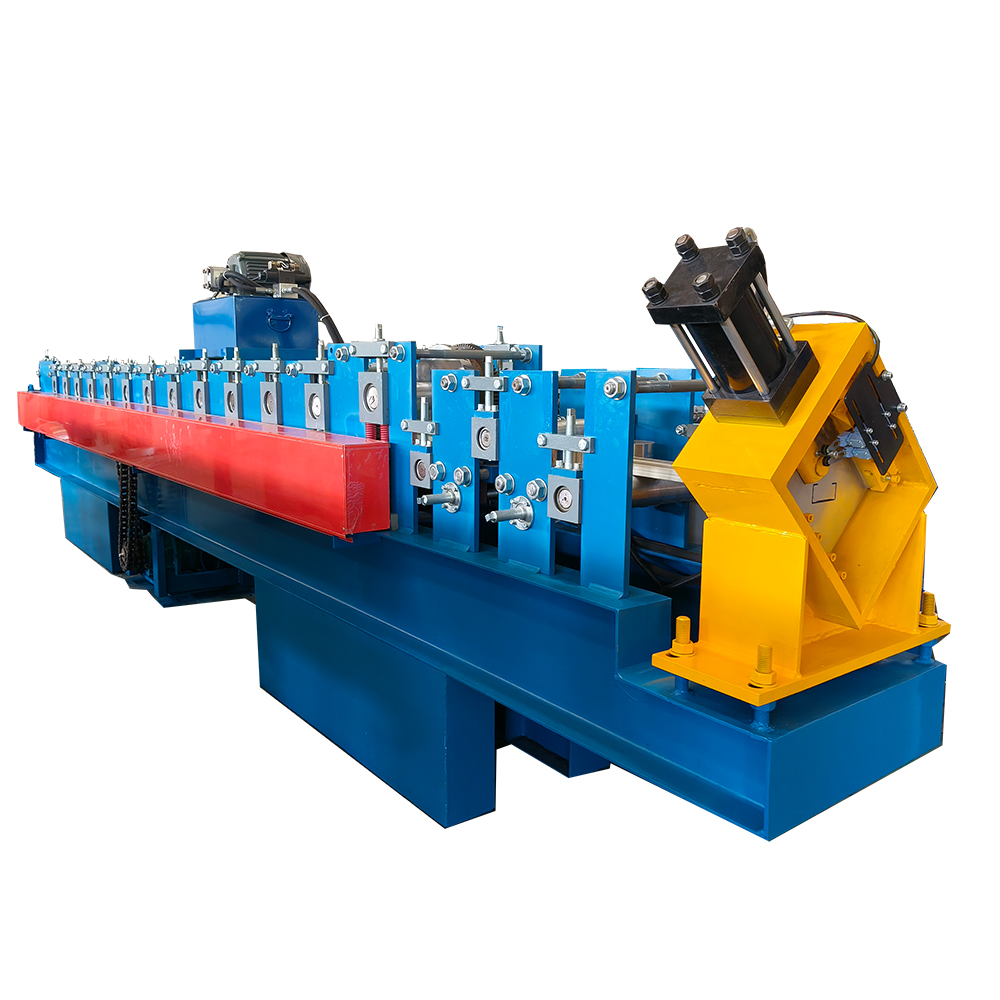

Benefits of the Automatic Size-Change C Purlin Machine
High Speed
The standard C/U/Omega stud roll forming machines provide reliable operation at approximately 30 m/min, while our high-speed versions increase output with speeds reaching 45 m/min to enhance productivity and shorten delivery times.
High Durable
Our roll forming machines feature robust steel rollers and shafts with hardened surfaces for durability, paired with a hydraulic cutting system and heat-treated blades for precise, long-lasting performance.
High Automatic
The high-speed C/U/Omega stud roll forming machine is equipped with a PLC control system, allowing users to easily set production quantity and operating speed directly from the control panel.
Overall Dimensions | 7000*1200*1500mm |
Weight | 4000 KGS |
Main Motor Power | 5.5 kW |
Voltage | 380V/50HZ/3PH |
Forming Stations | 13 stations + 3 leveling stations |
Roll Forming Speed | 0-30m/min |
Material Thickness | 0.5-1.0mm (Galvanized Steel G235-G550) |
Edge Width | 8.5mm |
Effective Width | 73mm |
Web Height | 31mm, 34mm |
Feeding Width | 151.8mm |
Cutting Tolerance | ±2mm |
Roller Material | 45#/GCr15 Steel, Polished & Hard Chrome Plated |
Shaft Material | 45# Steel |
Sprocket Material | 45# Steel, High-Frequency Quenching |

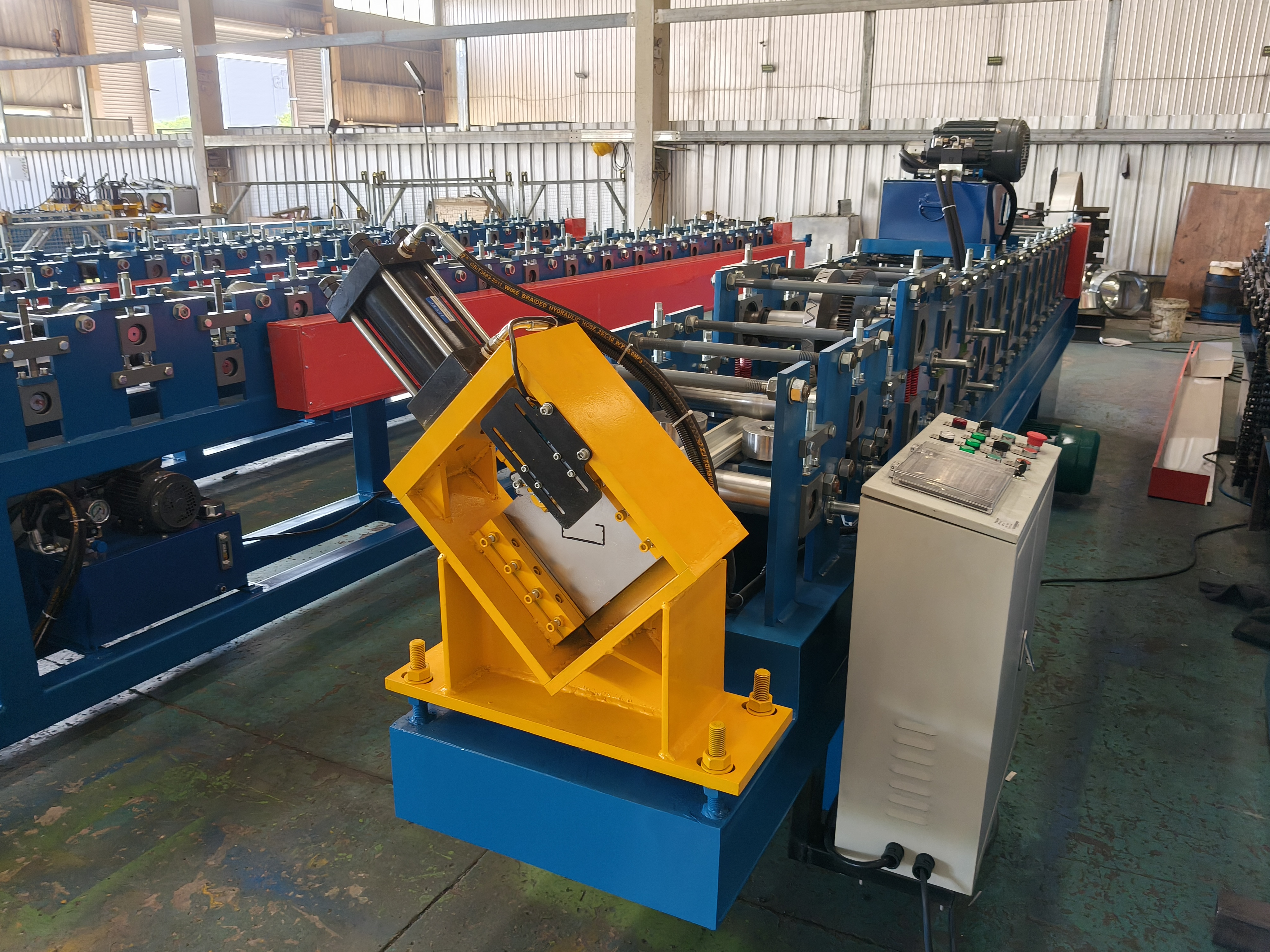

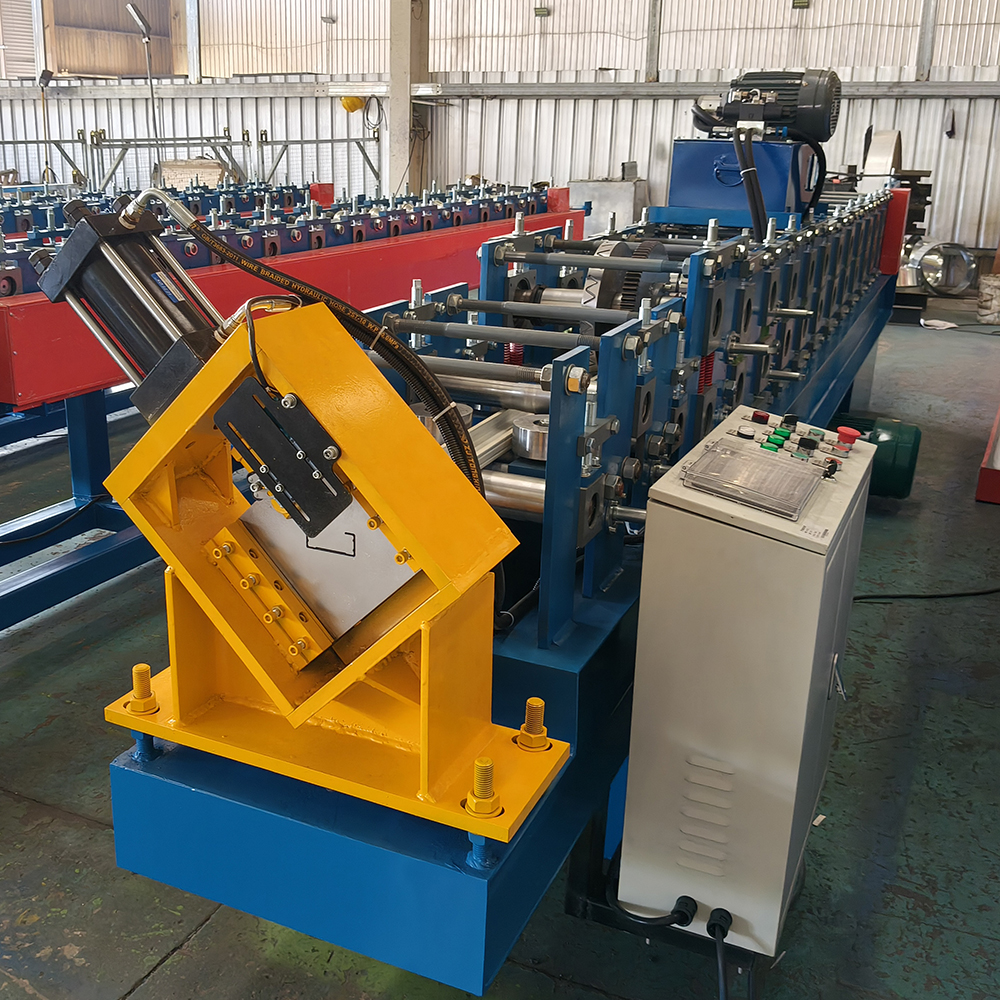

Cutting System | Hydraulic Cutting Device |
Blade Material | Cr12Mov, High-Frequency Quenching (60-62°) |
Applicable Material | Galvanized Steel |
C Channel Profile
A C channel profile, also known as a C-beam or C-section, is a popular structural steel shape characterized by its "C"-shaped cross section. Widely used across construction and industrial projects, C channels provide reliable support, framing, and reinforcement solutions. Available in various sizes, thicknesses, and materials like steel and aluminum, they offer versatility for many applications.
Common Applications of C Channel Profiles
· Structural Support: Used as beams, joists, or purlins in buildings and bridges to evenly distribute loads.
· Frame Construction: Ideal for door, window, and cabinet frames, as well as equipment and machinery frameworks.
· Conveyor Systems: Serves as a sturdy base or support structure in manufacturing and material handling conveyors.
· Solar Panel Mounting: Forms the framework for rooftop and solar farm panel installations.
· Automotive Industry: Utilized in vehicle frames and chassis for enhanced strength and rigidity.
· Electrical & Cable Management: Supports cable trays, raceways, and conduits in electrical setups.
· Signage & Billboards: Provides structural support for large signs and advertising boards.
C channel profiles vary by height, flange width, and thickness, allowing customization based on load requirements and project specifications.
Why Choose C Channel Profiles?
As one of many structural steel profiles—alongside I-beams, U-channels, and Z-channels—C channels offer a perfect balance of strength, weight, and flexibility for various structural needs.
Customized Solutions and Support
Our machines are tailored to meet diverse customer demands, and our team is always ready to assist with any questions or challenges.
Discover our extensive selection of roll forming machines and structural profile equipment designed to fit your specific project needs. Browse our collection here.
