1.2-1.6mm
Thickness Range
20m/min
Production Speed
5.5m × 1.1m × 1.4m
Dimensions L x W x H
Production Flow
Decoiling → Leveling →Roll Forming → Straightening → Cutting Off → Profile
Leveling

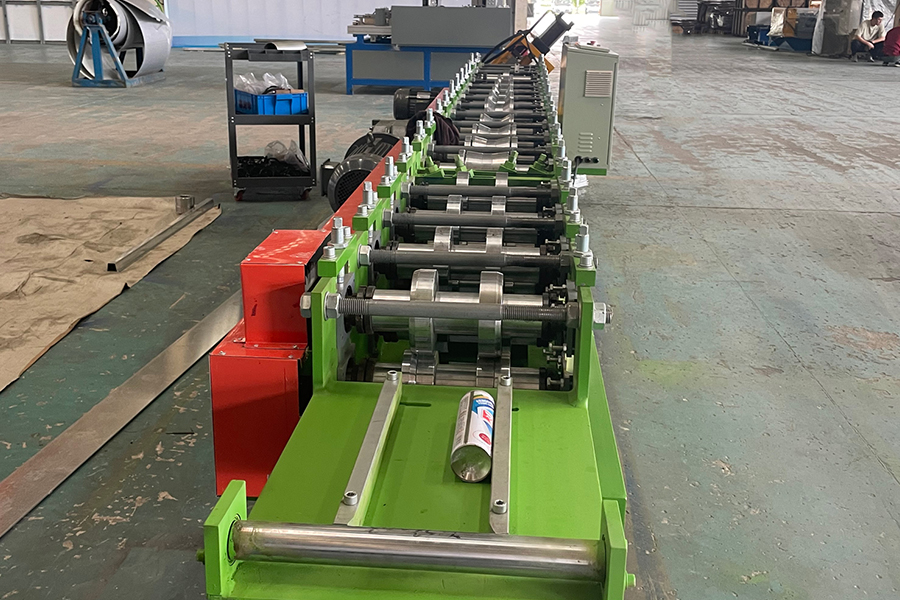

Roll Former

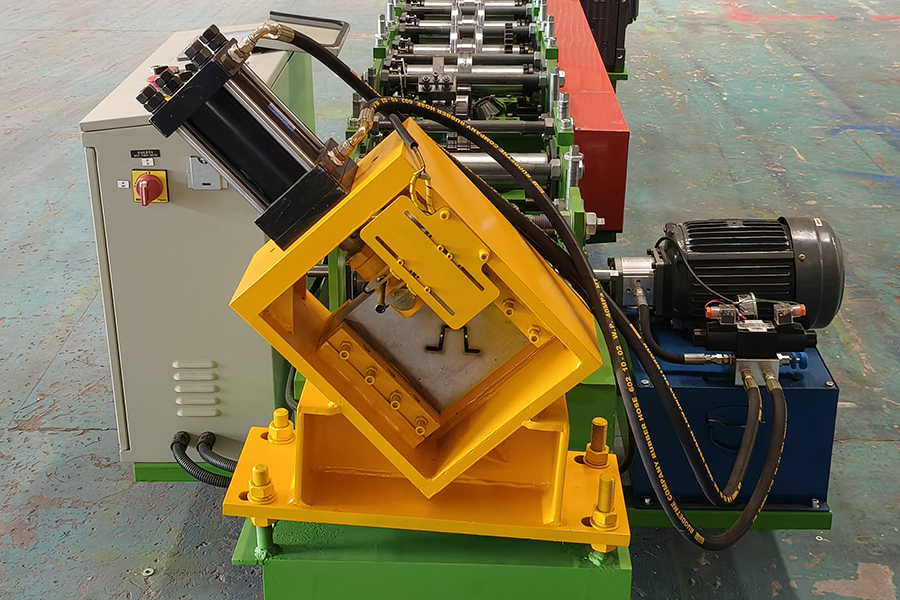

Cutter
Dimensions | 5500*1100*1400mm |
Weight | 2000KGS |
Hydraulic Power | 1.5KW |
Motor Power | 7.5KW |
Voltage | 380V / 3 Phase / 60Hz |
Forming Steps | 14 |
Forming Speed | 0-20m/min |
Purlin Height | 38mm |
Effective Width | 68mm |
Thickness | 1.2-1.6mm (Material: Q235GI) |
Cutting Tolerance | ±2mm |
Roller Material | High-quality 45# Forged Steel, Polished, and Hard Chromium Plated |
Raw Material | Galvanized Sheet |
Drywall Roll Forming Solutions
For drywall systems and partition wall installations, we provide a full range of roll forming machines, including:
1. Metal Stud Roll Forming Machine
2. Metal Track Roll Forming Machine
3. Corner Bead (Angle Bead) Roll Forming Machine
4. Wall Angle Roll Forming Machine
5. Furring channel (Ceiling channel/ Carrying channel) roll forming machine
6. Top hat roll forming machine
7. T bar (Main Tee) roll forming machine
Comprehensive Roll Forming Equipment for Construction
In the broader construction industry, we also manufacture:
· C/Z Purlin Roll Forming Machines
· Stud & Track Roll Forming Machines
· Drywall Roll Forming Lines
· Metal Deck (Floor Deck) Roll Forming Machines
· Roof & Wall Panel Roll Forming Machines
· Roof Tile Roll Forming Machines
We offer high-speed production solutions with flying cut systems, reaching up to 45m/min. To reduce equipment costs and increase efficiency, we also provide double-row and triple-row roll forming machines that allow you to produce multiple profiles on one line.
Custom Solutions by RollMac
RollMac Machinery delivers tailored roll forming solutions based on your profile drawings, tolerance requirements, and budget. Our one-on-one technical support ensures you receive a reliable, cost-effective machine that produces high-precision, fully functional profiles—no matter which line you choose.
