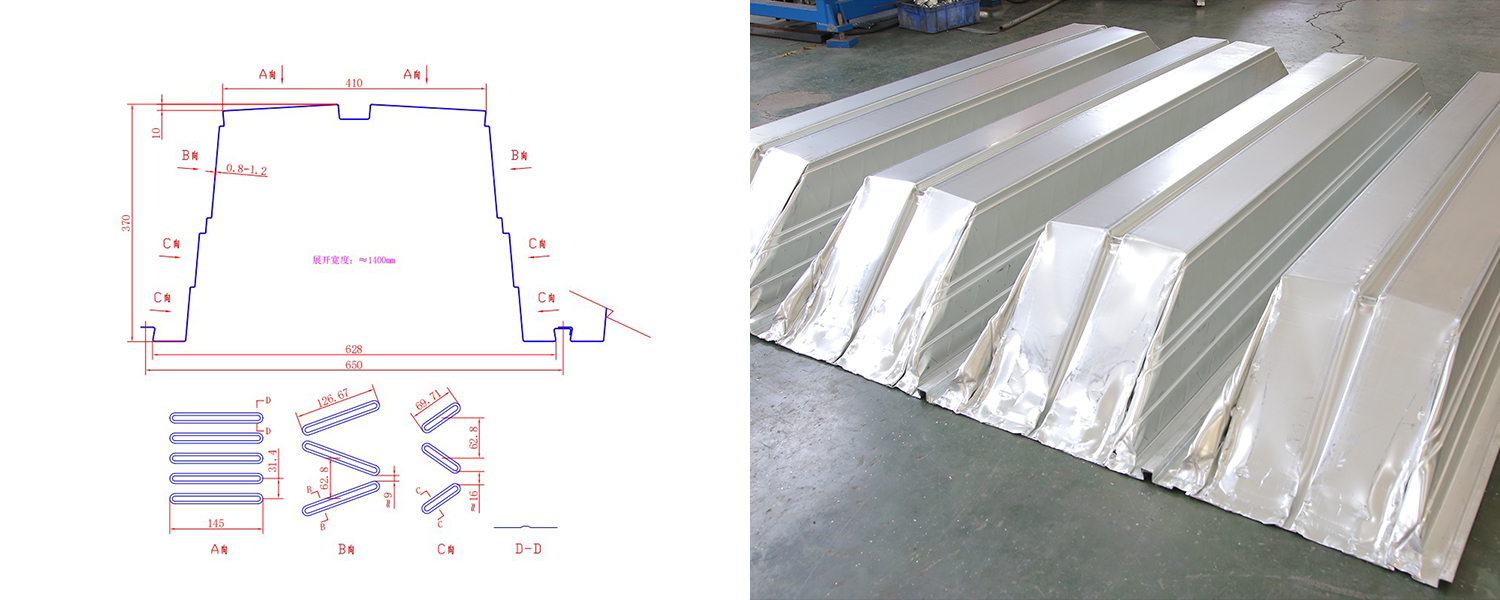

Profile Detail
| Rollmac YX370-650 Steel Floor Deck Machine Specification | |||
| Parameter | Specification | Parameter | Specification |
| Machine Size | 16000 × 1800 × 1500 mm | Machine Weight | 22,000 kg |
| Forming Stations | 45 | Forming Speed | 12–18 m/min |
| Effective Width | 650 mm | Coil Width | 1400 mm |
| Rib Height | 370 mm | Material Thickness | 0.8–1.2 mm |
| Suitable Material | GI Steel (Y.P. 350 MPa) | Cutting Tolerance | ±2 mm |
| Hydraulic Motor | 37 kW | Power Supply | 380V / 50Hz / 3Ph |
| Roller Material | 45# Steel + GCr15, Hard Chrome | Shaft Material | 40Cr Steel |
| Sprocket Material | 45# Steel, HF Quenched | Blade Material | Cr12MoV, 60–62 HRC |
| Frame Material | Fine Welded Structural Steel | Cutting System | Hydraulic Cutting |
| Machine Color | Blue or Customized | Machine Test | Buyer Provides Material |
Product Detail
 | Metal Deck Roll Forming Solutions ——— RollMac Machinery provides efficient metal deck roll forming solutions for manufacturing steel floor decking, roof decking, liner panels, and wall panels. Our machines feature flexible configurations, precise forming technology, and reliable automation to ensure stable production for various construction applications. Designed with quick profile changeover options, durable components, and integrated material handling systems, RollMac metal deck roll forming machines help manufacturers improve productivity, safety, and overall production efficiency. With customized solutions available, we support customers in optimizing their metal forming processes and expanding their product capabilities. |

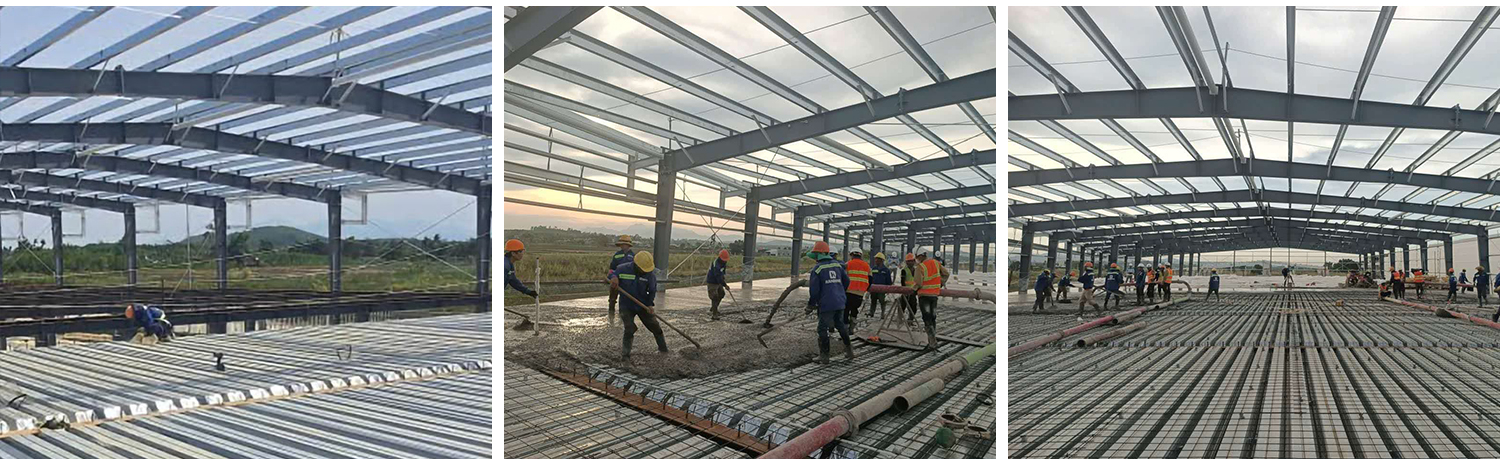

Application
