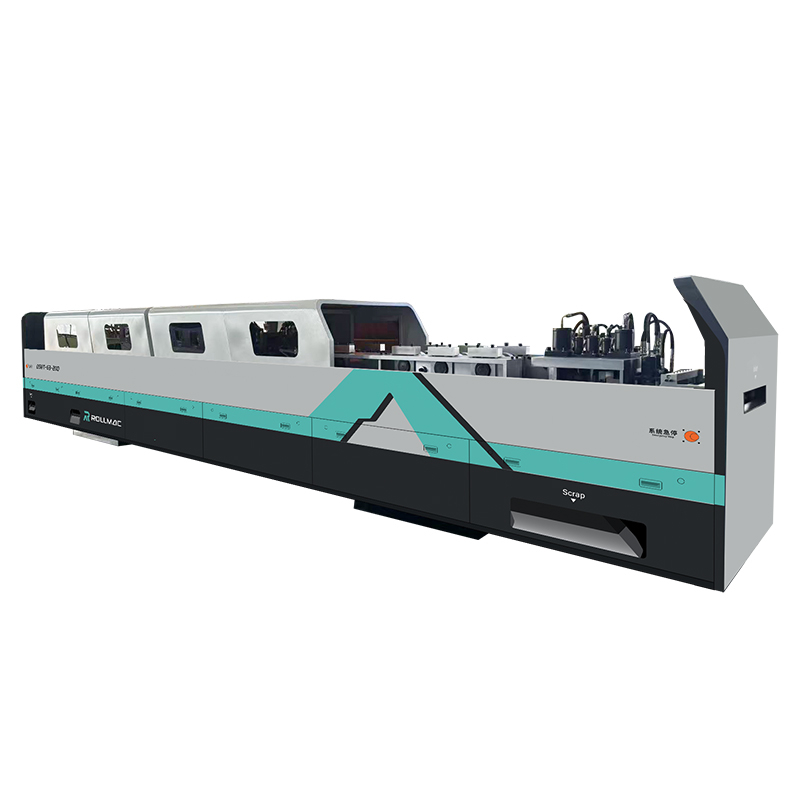

LGS machine offers a comprehensive range of roll forming machines specifically for light gauge steel structures. The lgs machine enables continuous automatic production, utilizing advanced manufacturing systems that efficiently create lightweight steel framing suitable for both modular and residential applications.
0.75-1.6MM
Thickness Range
45m/min
Production Speed
63mm to 200mm
Size Range

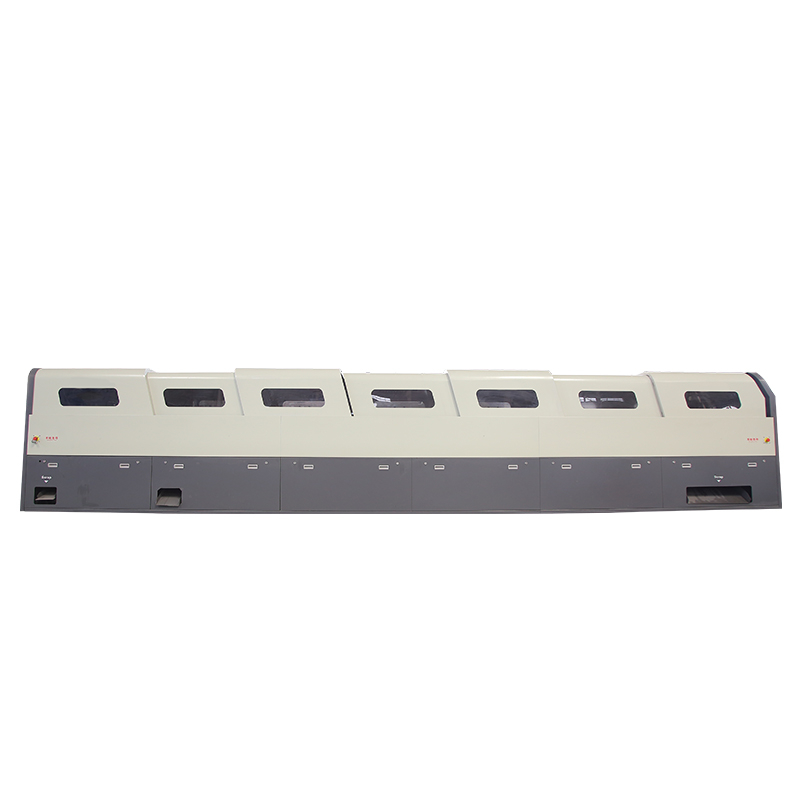

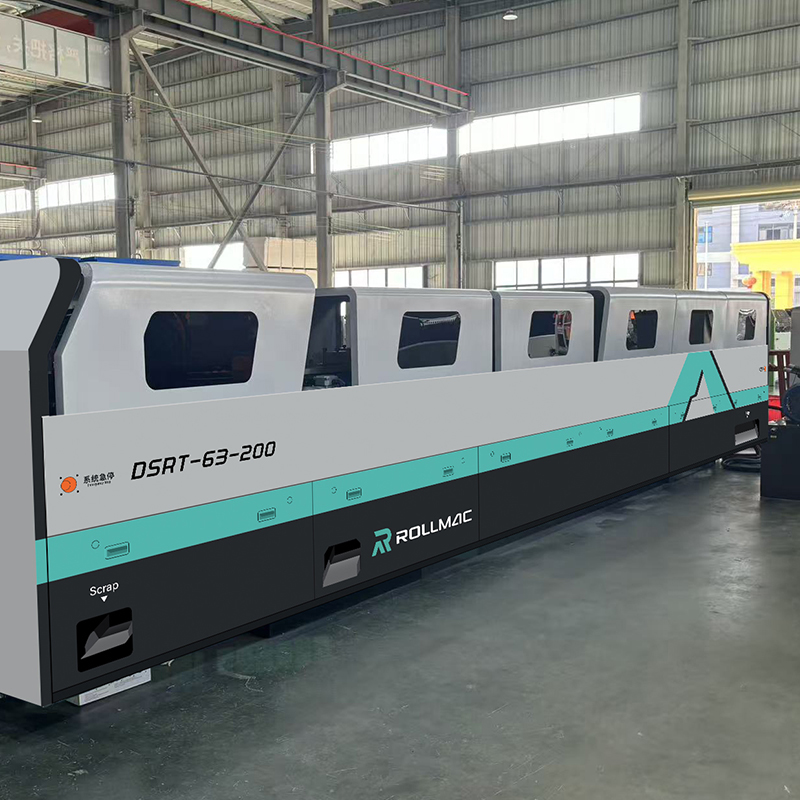

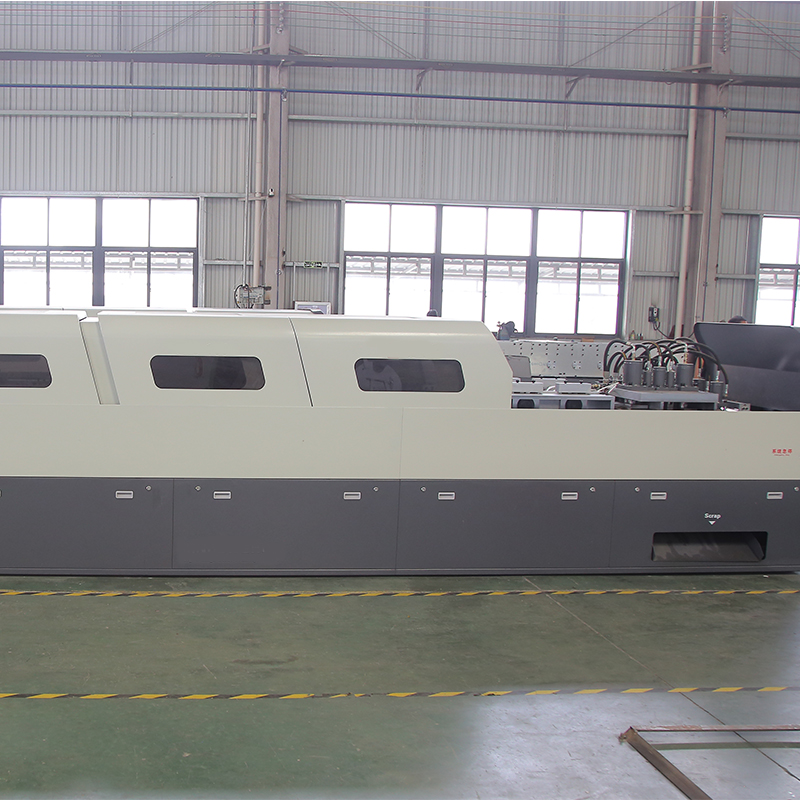

See the RollMac C63-200 in Action

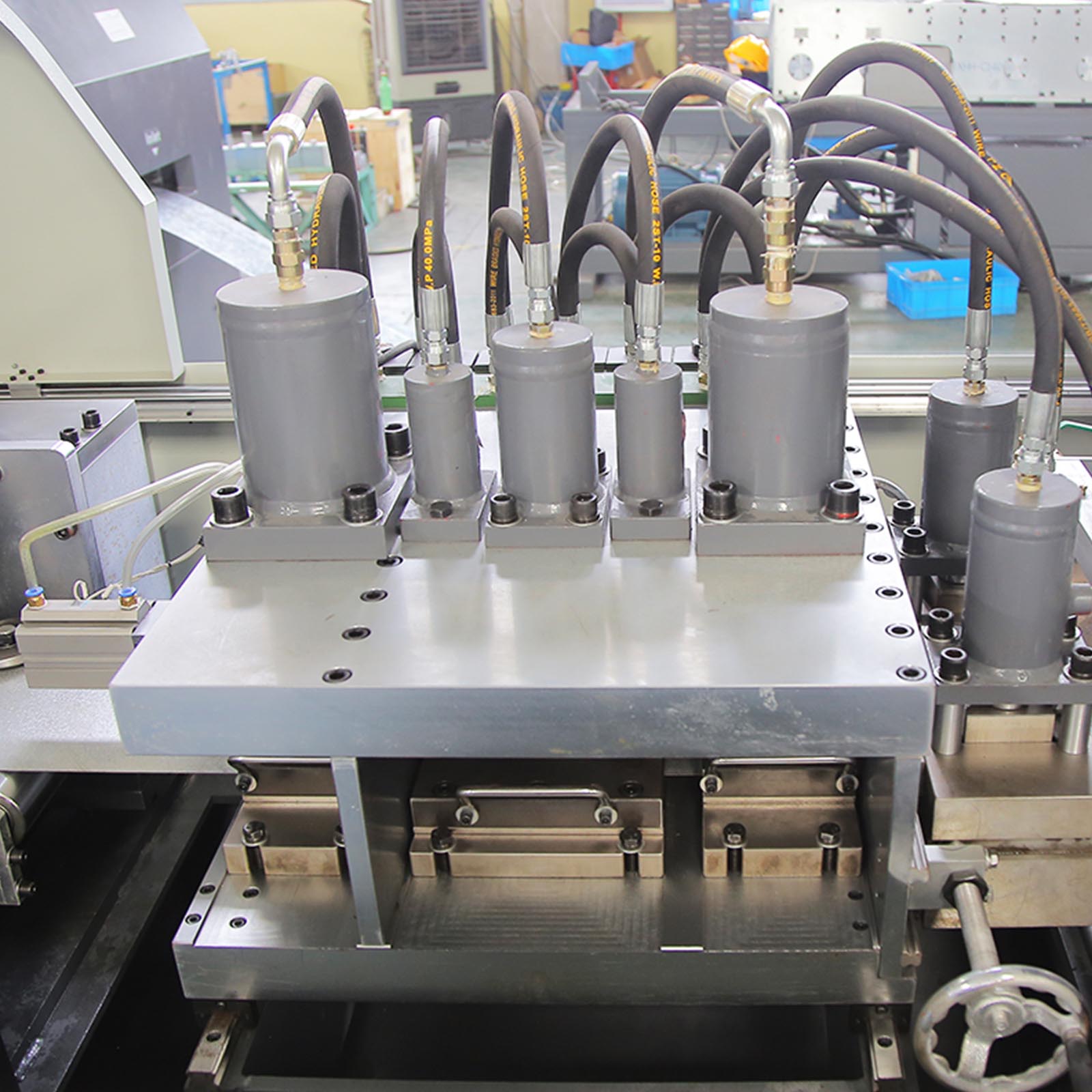

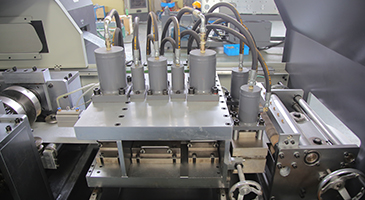

Integrated Hydraulic Actuation System (1) Rapid Precision Punching High-speed punching with uncompromised stability. (2) Tool-Free Changeover A unified mold cartridge enabling tool-less changeovers. (3) Micro-Precision Machining Precision hole positioning with dimensional accuracy. |
Multiple sizes with varied choices (1) Versatility: These machines are capable of producing a variety of profiles, catering to different project demands. (2) Flexibility: Multi-profile machines can adjust to custom designs and specific project requirements, thereby decreasing overall production time and costs. (3) Space Efficiency: Utilizing a single multi-profile machine can conserve the floor space equivalent to that of four dedicated single-profile machines, rendering it an optimal selection for manufacturers with space constraints. |

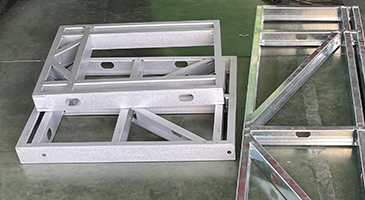

Patented 0mm-gap connection strengthens every joint (1) Key Features: RollMac’s patented seamless end-cutting technology enables gapless intergration between top/bottom tracks and horizontal stubs,enhancing vertical load transfer efficiency. (2) The presence of clearance between horizontal and vertical studs in competitor systems results in abnormal load transfer to interconnecting fasteners,posing serious structure safety risks. |

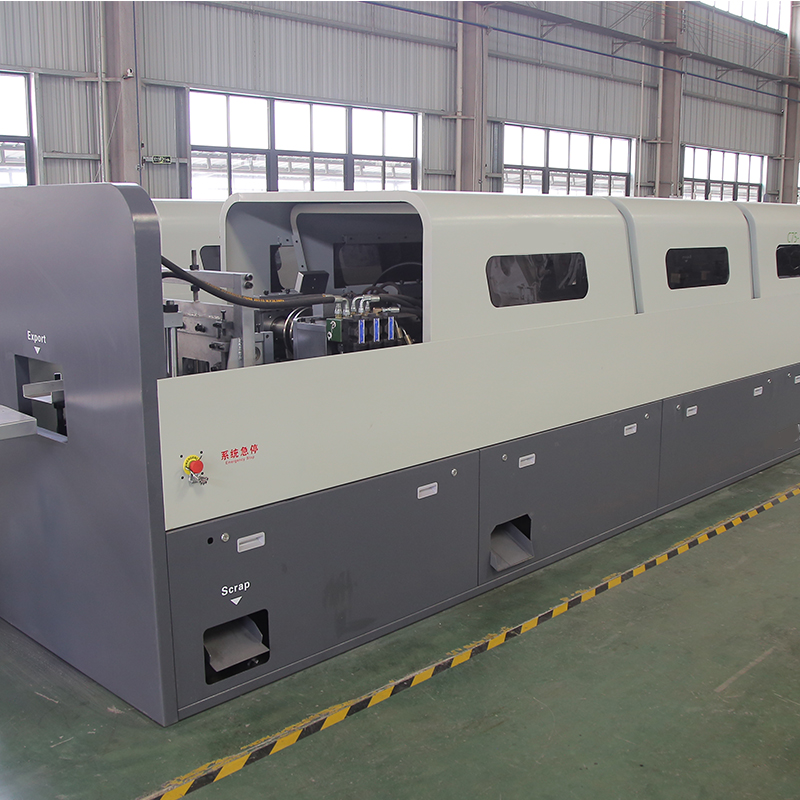

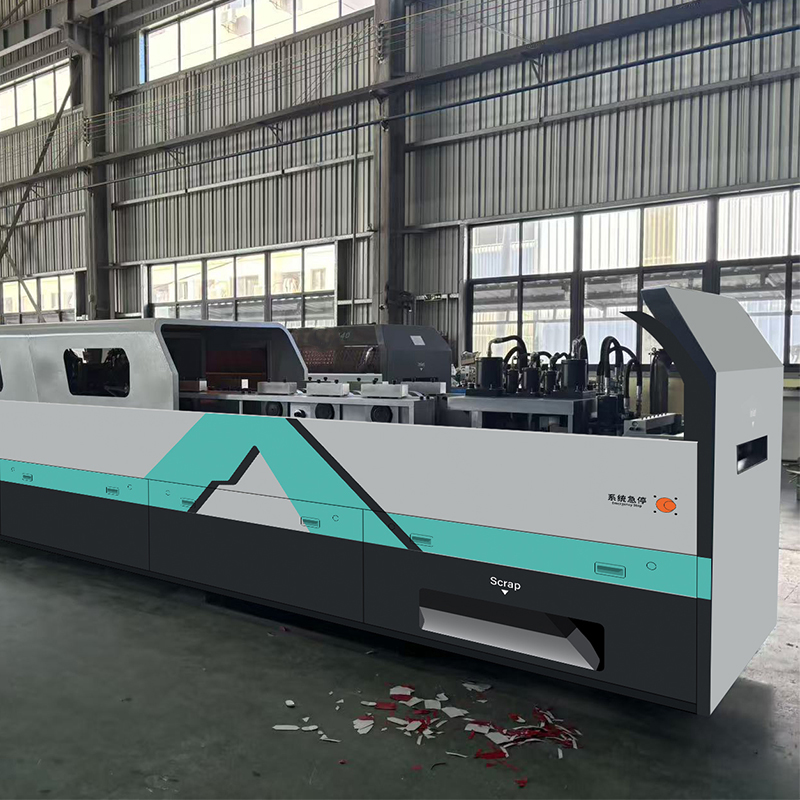

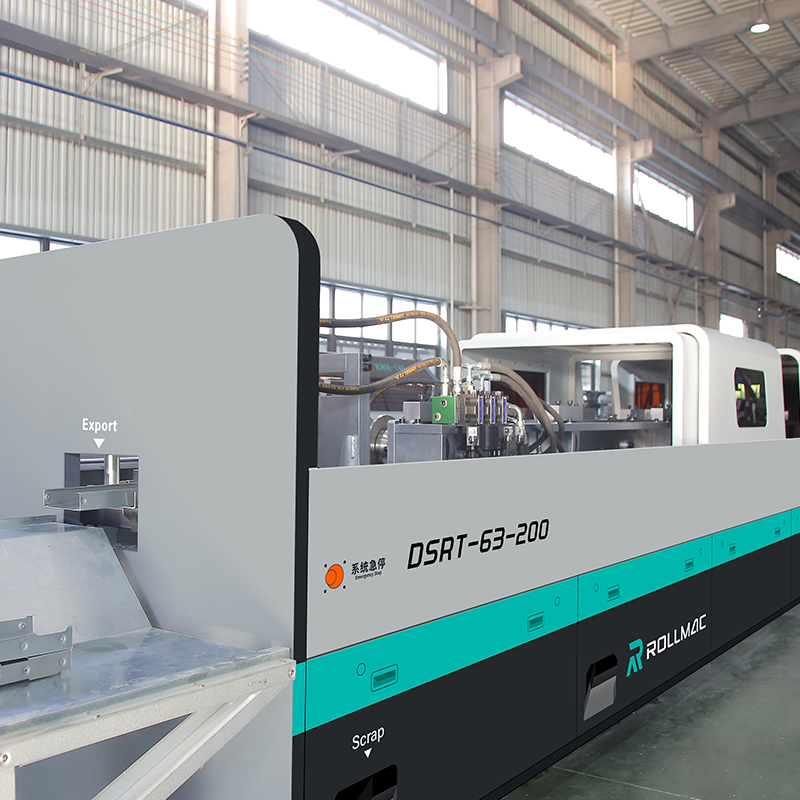

RollMac-C63-200 steel frame machine Specification | ||||
HYDRAULIC UNCOILER MACHINE | ||||
Strip Width | Coil Exterior Diameter | Rated Load | Main Motor Power | Material Width |
≤500mm | ≤1300mm | 3T | 4kw | 50-500mm |

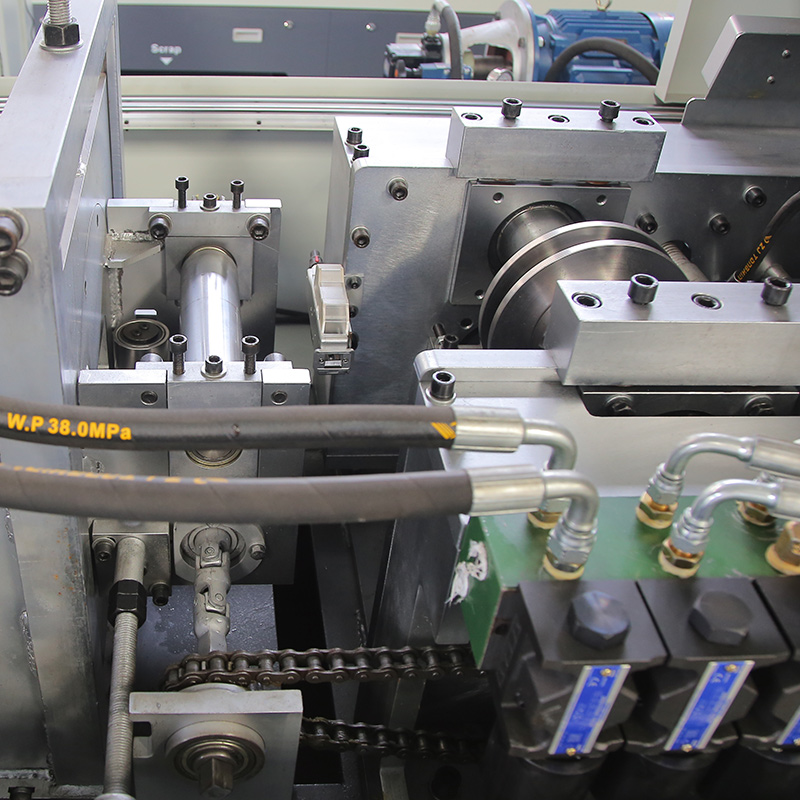

ROLL FORMER MACHINE-HEAT TREATMENY | ||||
Machine Dimension | Machine Weight | Forming Method | Main Motor | Forming Speed（without punching & cutting） |
8600x1300x1600mm | 9T | 17stations（cold roll forming） | 20.5kw Servo Motor | 45m/min |
HYDRAULIC PUNCHER/CUTTER MOULD | ||||
Die/Blade Material | Punch & Cutting | Punch/Cutting Tolerance | Cutting Method | Surface Treatment |
Cr12Mov | Pre and Post Punching | ±1mm/1mm | Forming Cutter (blanking shear with three blades) | CNC semi-finishing;Vacuum treatment to 58-60HRC CNC refining |

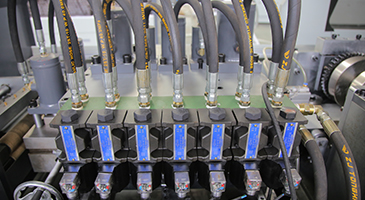

HYDRAULIC STATION | ||||
Hydraulic Motor Power | Hydraulic System | Hydraulic Pump/ Reversing Valve Brand | Oil Tank Capacity | Cooler machine |
11kw Hydraulic Motor（Taiwan Brilliance） | Dual Accumulator（production efficiency 30%-40% up) | YUKEN | 180L | Oil Cooler |

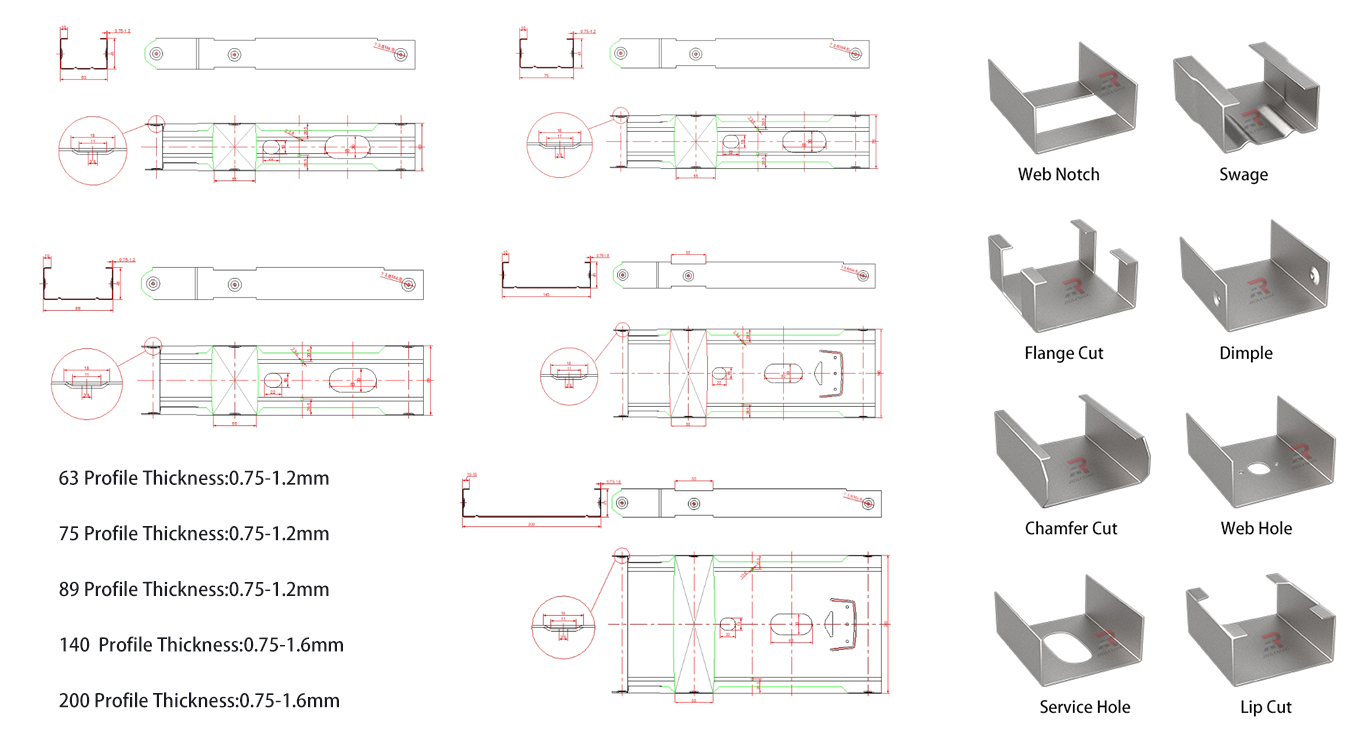

Profile Drawing
Machines featuring a variable profile size (within the specified range) and thickness range

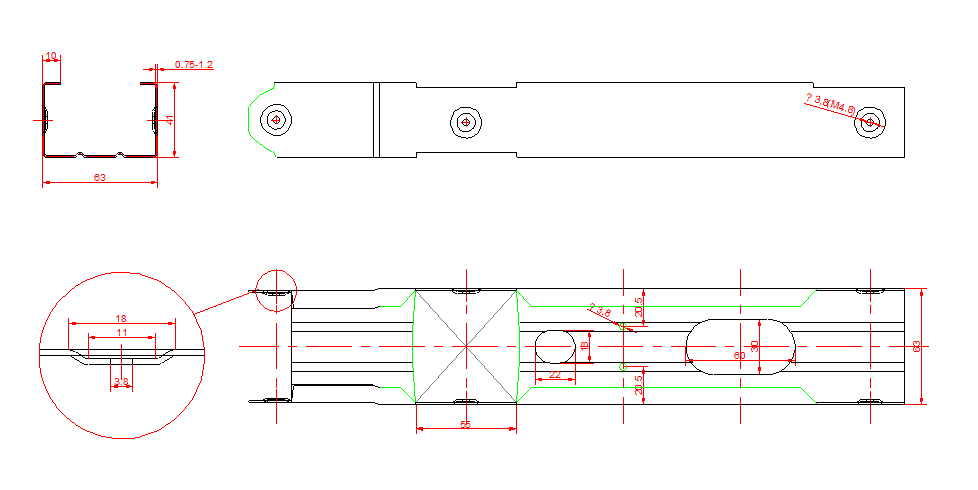

63
Profile Thickness:0.75-1.2mm

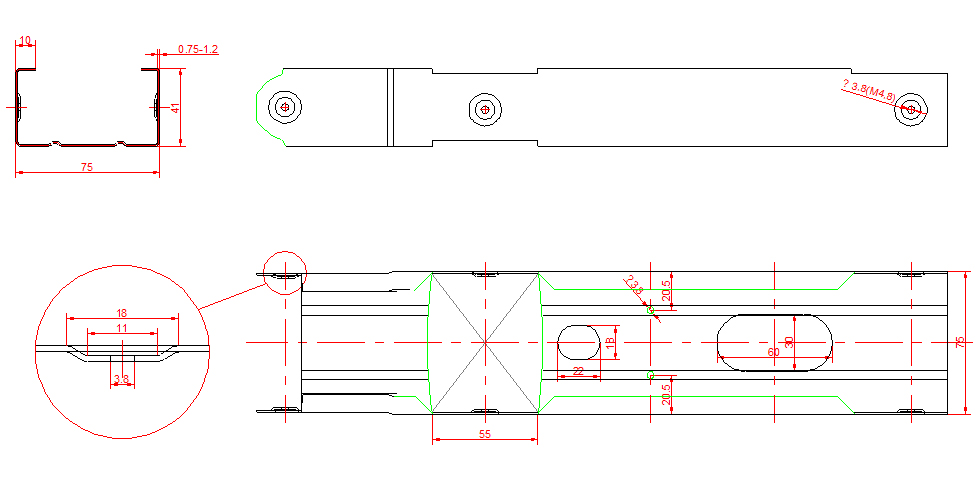

75
Profile Thickness:0.75-1.2mm

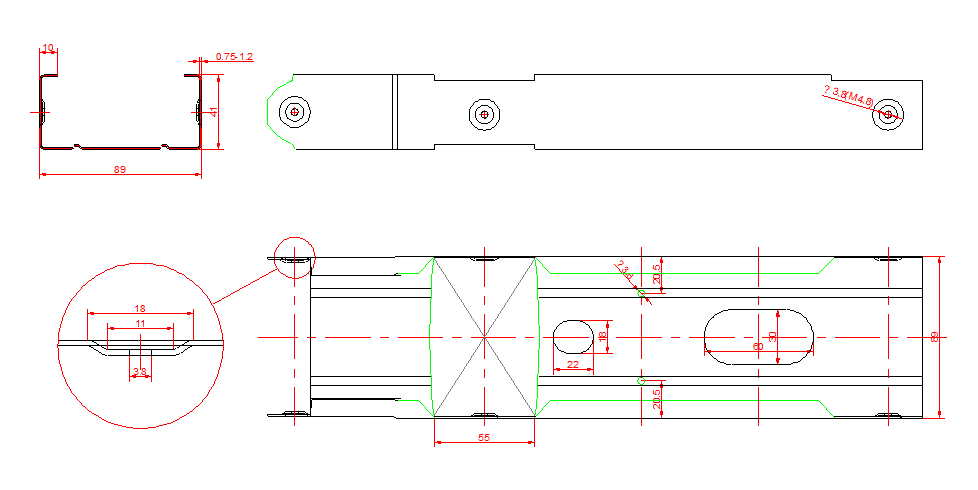

89
Profile Thickness:0.75-1.2mm

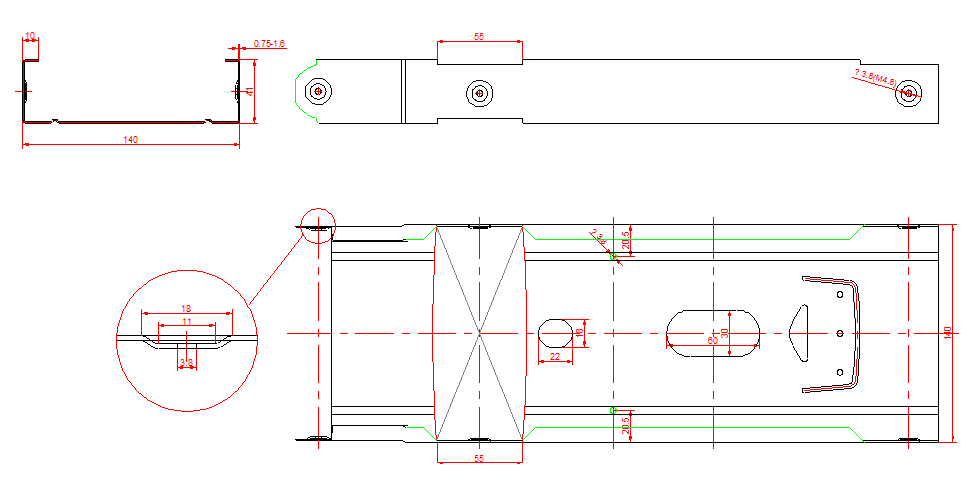

140
Profile Thickness:0.75-1.6mm

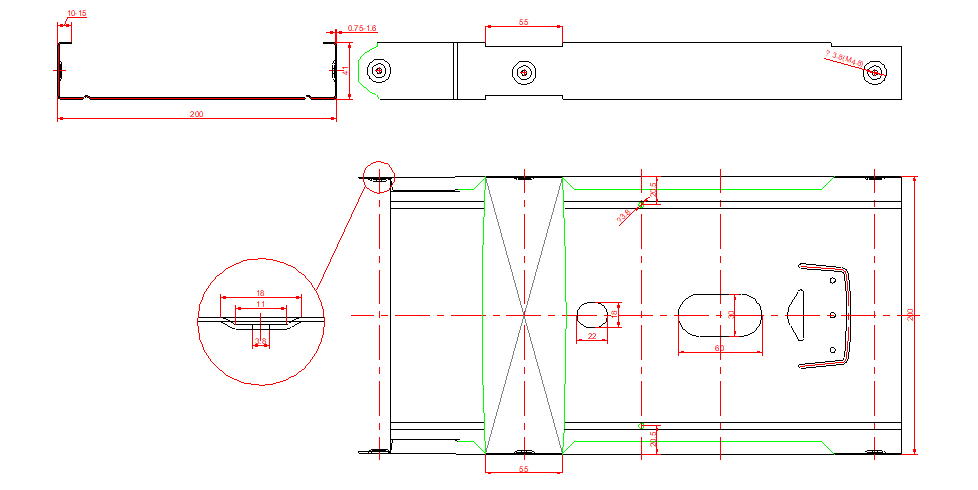

200 Profile
Thickness:0.75-1.6mm
Why Choose RollMac’s Light Gauge Steel Machine:
(1) Versatility: These machines are capable of producing a variety of profiles, catering to different project demands.
(2) Flexibility: Multi-profile machines can adjust to custom designs and specific project requirements, thereby decreasing overall production time and costs.
(3) Space Efficiency: Utilizing a single multi-profile machine can conserve the floor space equivalent to that of four dedicated single-profile machines, rendering it an optimal selection for manufacturers with space constraints.
RollMac Custom Built Machines
RollMac’s Rolling Division provides custom rollforming services through our in-house rolling mills, giving customers the confidence to entrust their production needs to our experienced team.
Our vertically integrated process makes RollMac a true one-stop solution — from initial tooling design and development, to in-house tooling fabrication, and final production launch, we support every step of the journey.
With RollMac’s in-house rollforming experts, customers are assured of receiving high-quality parts, delivered on time and at competitive prices.
