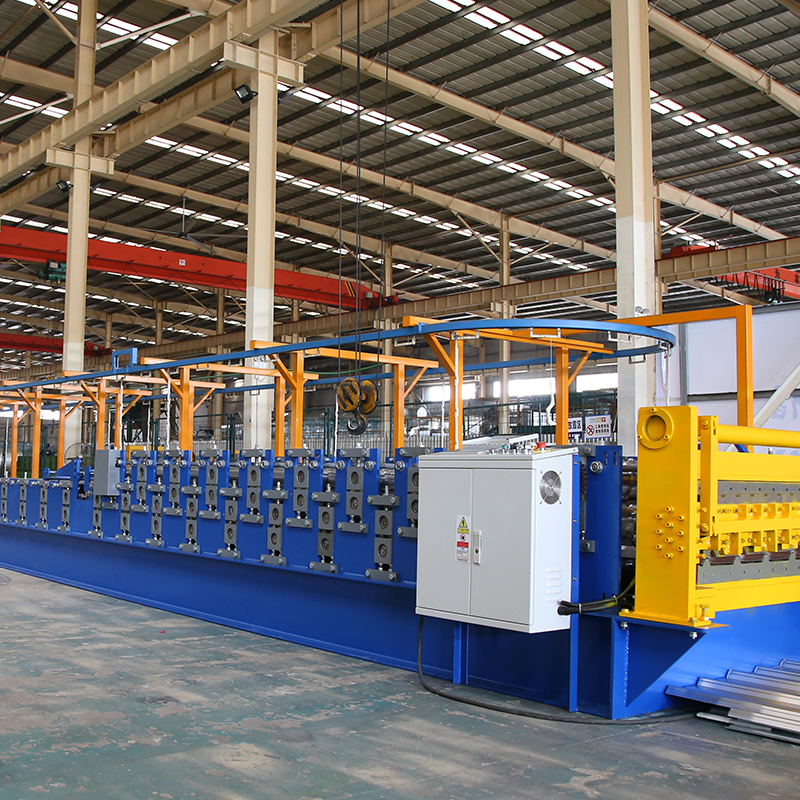

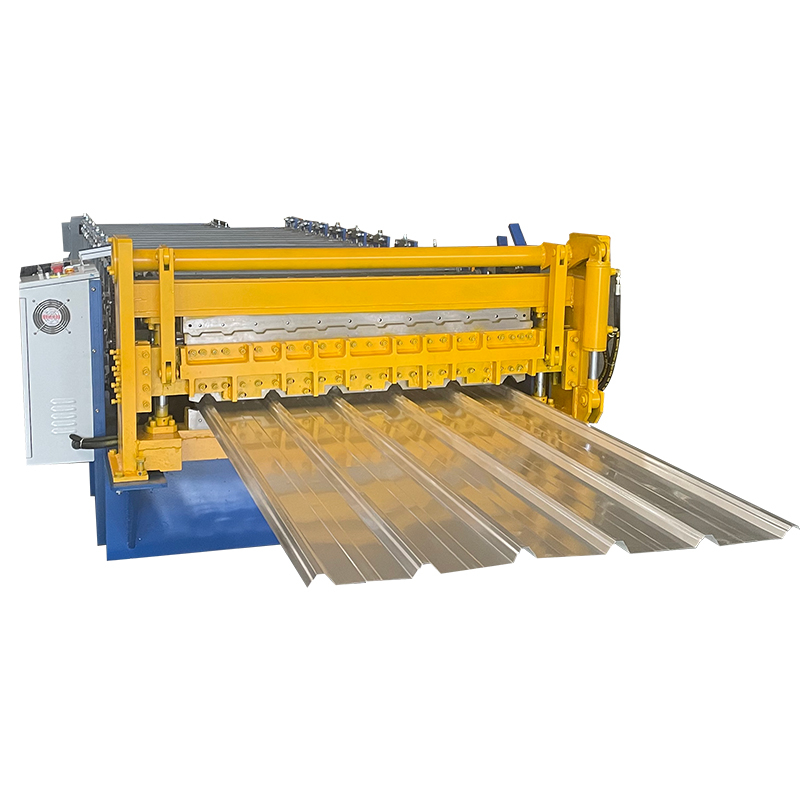

Double Layer Roll Forming Machine

The double layer forming machine is one of the most cost-effective roll forming solutions, widely used in steel structures and industrial plants. Unlike single-layer machines, it features two sets of forming rollers, allowing production of different roofing sheets or wall panels on the same machine. The palletizing system adjusts to fit both layers, enabling output of various profiles such as corrugated sheets, wall panels, roof panels, or deck panels. This design saves workspace and boosts efficiency.

Availability:

Quantity:



Inquire

Product Description

0.3-0.6MM

Thickness Range

20m-25m/min

Production Speed

6.8m × 2.0m × 1.3m

Dimensions L x W x H

Model Number	YX25-840	YX15-900
Size	680020001300mm	680020001300mm
Weight	6500KGS	6500KGS
Motor Power	5.5KW	5.5KW
Hydraulic Power	1.5KW	1.5KW
Voltage	380V/50HZ/3PH	220V/60HZ/3PH
Forming Steps	14 steps	8steps
Processing Speed	20-25m/min	20-25m/min
Thickness	0.3-0.6mm	0.3-0.6mm
Feeding Material Width	1000mm	1000mm
Effective Width	840mm	900mm
Height of Roofing	24mm	24mm

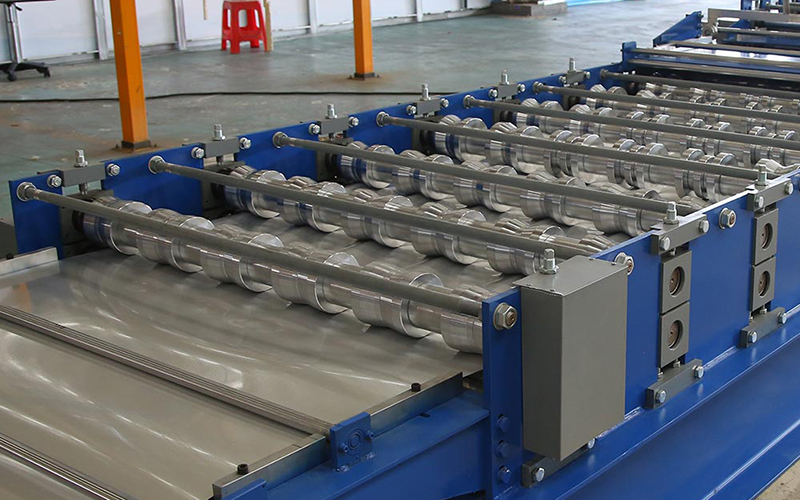

Sheet Guiding Device

Features: Provides smooth and accurate material feeding.

Components: Steel plate platform, two guide rollers, and a position stop block.

Function: Guides the coil into the correct position and feeds it reliably into the roll forming machine.

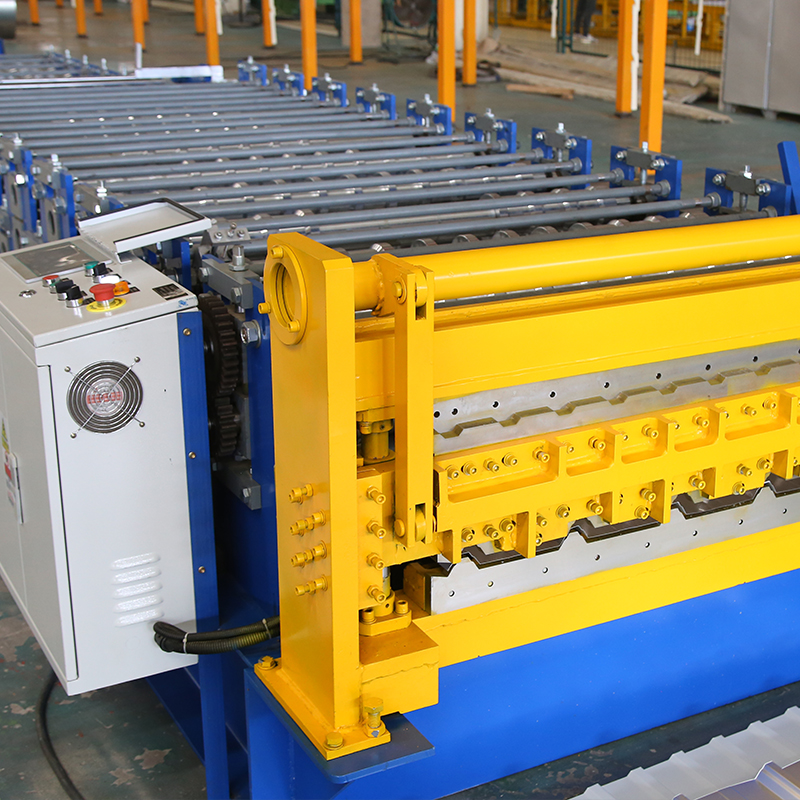

Roll Former

The machine’s main frame is welded separately, and the outer panels are fastened with screws after surface rot blasting.

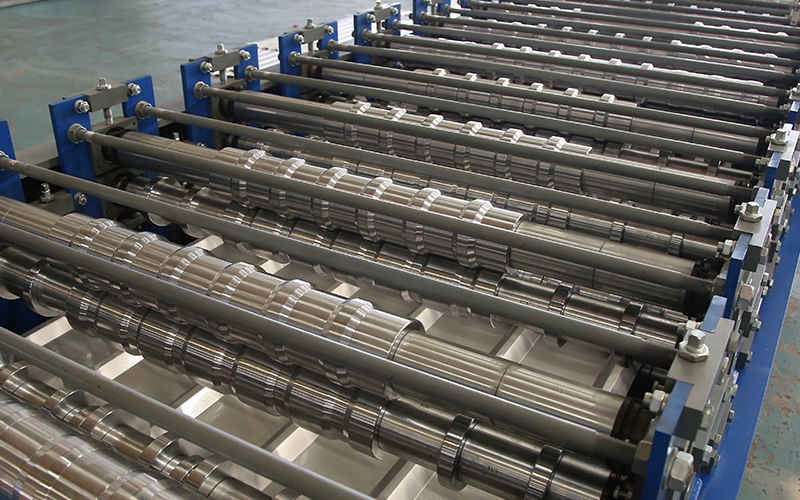

Rollers: Made from high-grade No.45 forged steel and processed with digital-controlled precision.

Shafts: Each roller shaft is ground twice using precision grinding machines to ensure accuracy and high-quality final products.

Durability: After machining, rollers are plated with hard chrome, providing long-lasting performance and extended service life.

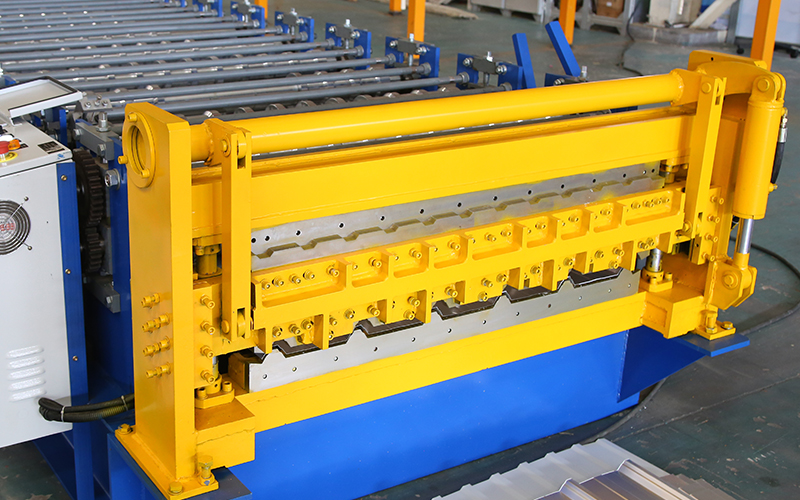

Hydraulic Post Cutting

Function: The cutting process is PLC-controlled. The main machine automatically stops for cutting, and resumes operation once cutting is complete.

Power Supply: Hydraulic station

Frame: Welded steel structure

Stroke Switch: Non-contact photoelectric switch

Cutting Method: Sheets are cut to the required length after roll forming

Length Measuring: Automatic length measurement for precise cutting

Our double layer roll forming machines are manufactured by RollMac professionals using premium components and advanced technology, fully compliant with international quality standards. We supply a wide range of automatic double layer roof panel roll forming machines, designed to produce different types of metal roofing sheets, wall panels, and corrugated sheets according to customer requirements.

Steel double layer roll forming machine
A double layer roll forming machine can produce two different sheet profiles, such as:

· Trapezoidal roofing sheet + corrugated sheet

· Trapezoidal sheet + metal roof tile

· Corrugated sheet + glazed roof tile

Key Features

· Two sets of forming rollers allow multiple profiles on a single machine, saving space and investment.

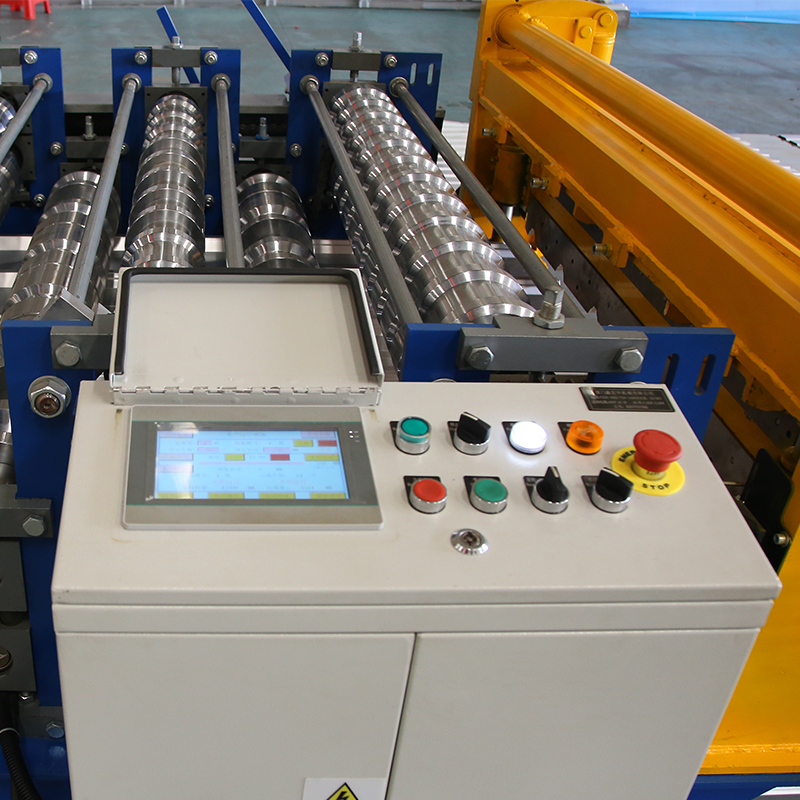

· One PLC control system stores specifications such as cutting length and production quantity.

· Both upper and lower roll forming parts share the same motor, with a clutch system to switch between layers.

· Please note: the two layers cannot run simultaneously, but can be quickly switched as required.

With high efficiency, flexible design, and cost-effectiveness, our double layer roll forming machine is an ideal choice for roofing sheet and wall panel production.
