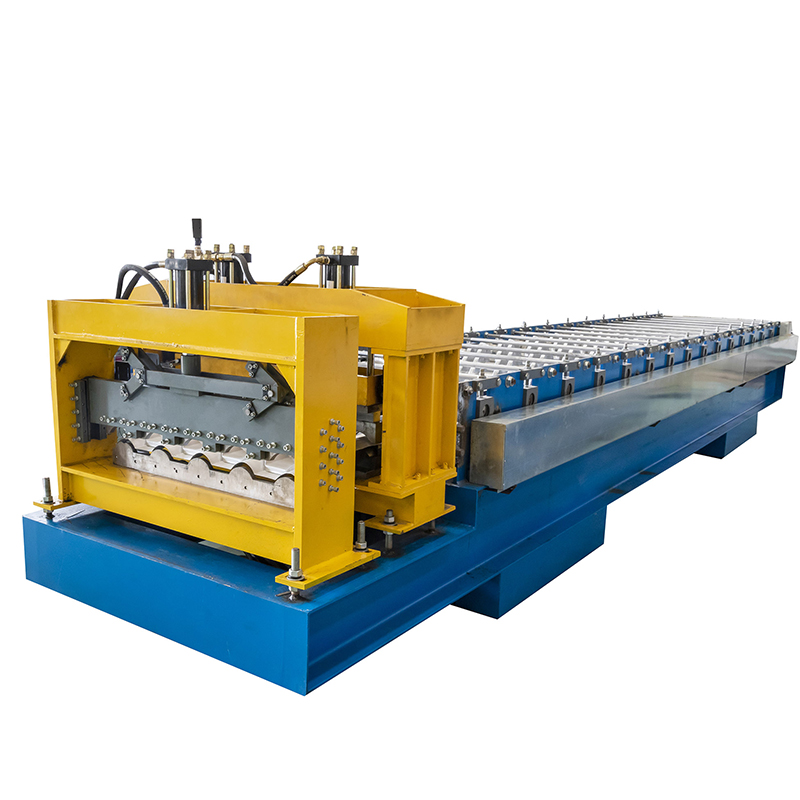

Glazed Sheet Roll Forming Machine

The glazed tile roll forming machine is designed to produce roof sheets in different shapes, thicknesses, and colors. Compared with traditional ceramic tiles, these sheets are more popular due to their lower cost, lighter weight, shorter construction period, recyclability, and stylish appearance.They are widely used for the roofing of villas, luxury homes, theaters, exhibition halls, and similar projects

Availability:

Quantity:



Inquire

Product Description

0.3-0.6MM

Thickness Range

8m-20m/min

Production Speed

8.0m × 1.5m × 1.6m

Dimensions L x W x H

Model Number	YX37-840
Size	800015001600mm
Weight	6500KGS
Motor Power	5.5KW
Hydraulic Power	3.7KW
Voltage	380V/50HZ/3PH
Forming Steps	12steps
Processing Speed	8-12m/min
Thickness	0.3mm~0.6mm
Feeding Material Width	1000mm;
Effective Width	840mm
Height of Roofing	38mm

Glazed Roof Tile Forming Machine Details

Feeding Table

1. Function – Guides the sheet smoothly into the machine.

2. Benefits – Keeps the sheet flat and stable for accurate forming.

Hand Knife – Allows manual trimming to reduce material waste.

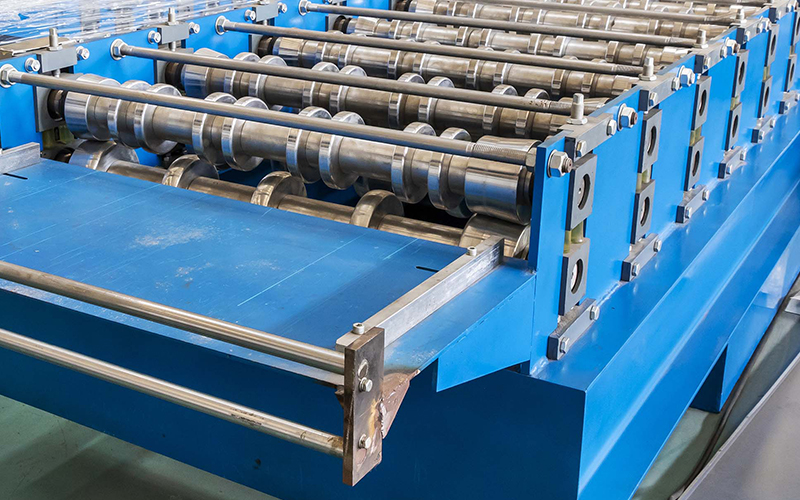

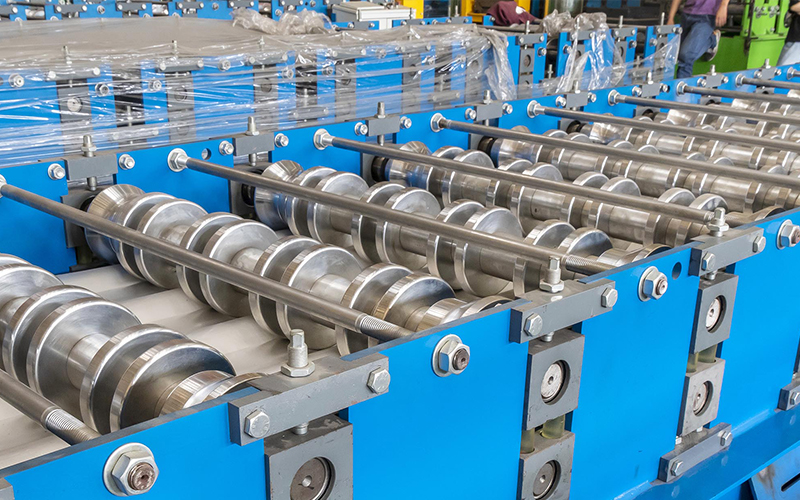

Main Rollers

1. Material – Made of 45# high-carbon steel.

2. Process – Forged, polished, heat-treated, and finished with chrome plating.

3. Benefits – The rollers are smooth and durable, ensuring high hardness without scratching the sheet surface.

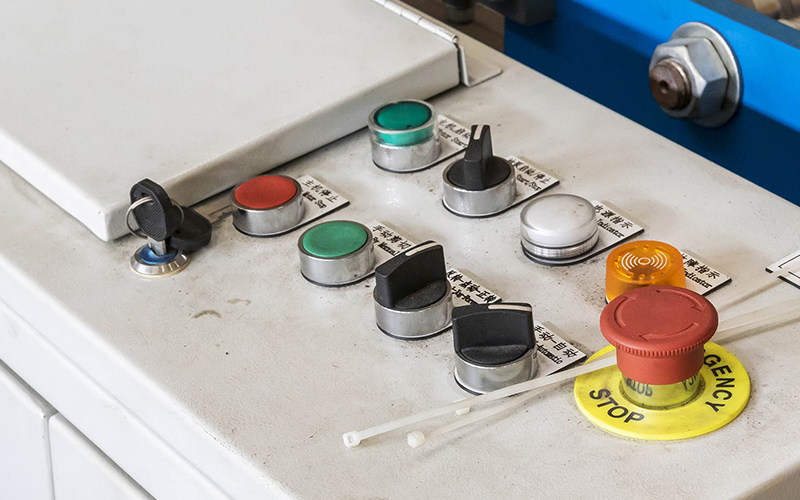

Computer Control Cabinet

1. Brand Options – Available with DELTA, or SIEMENS components, based on customer requirements.

2. Operation Languages – Supports multiple languages including English, Russian, Spanish, and Chinese.

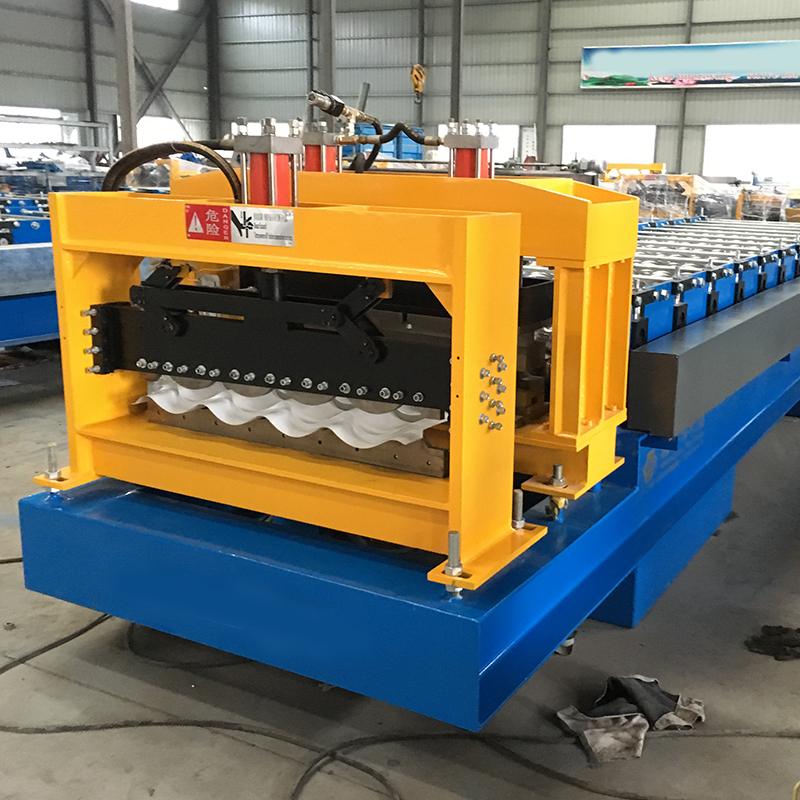

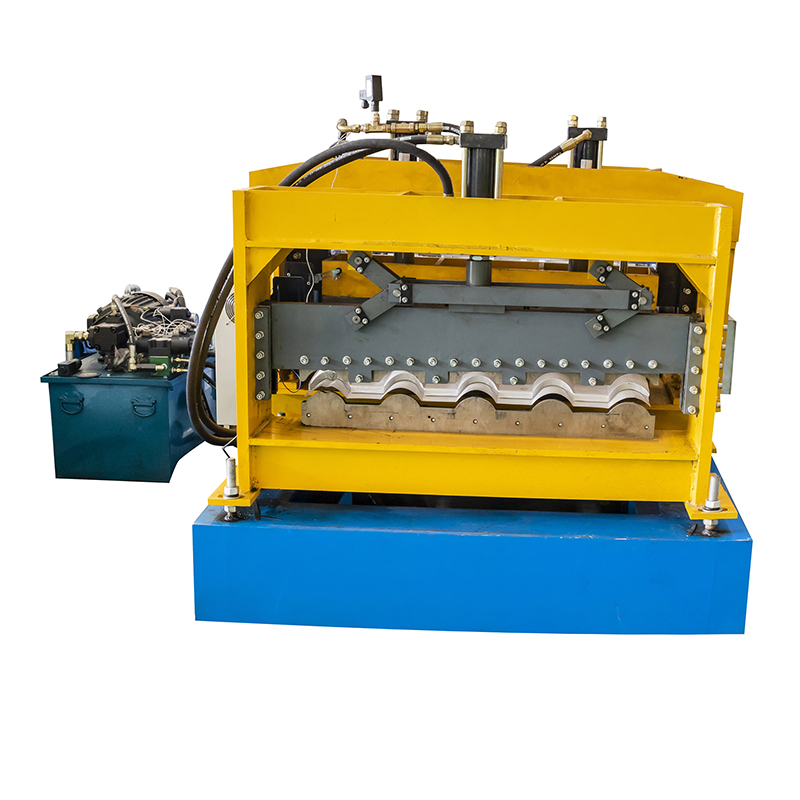

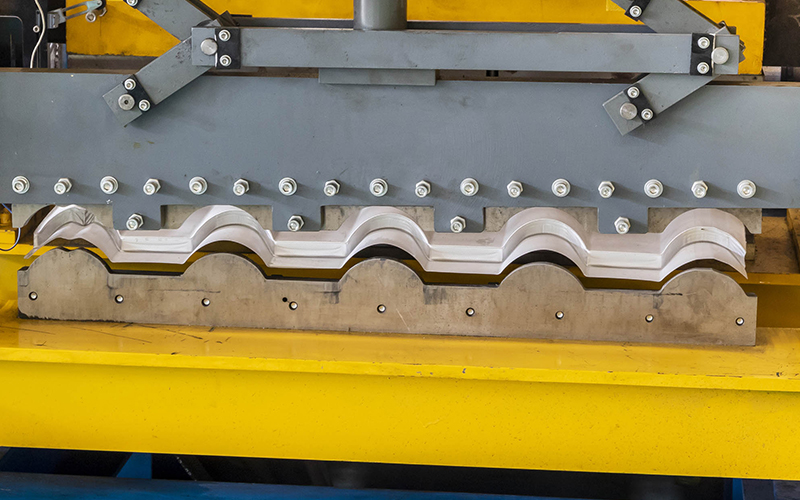

Hydraulic Cutting Device

1. Material for Blade: Cr12Mov steel with quenched treatment 60-62°C;

2. Hydraulic Pump Station:3.7KW;

About RollMac

RollMac specializes in the design and manufacturing of a wide range of cold roll forming machines and automatic production lines. We have a dedicated team of skilled engineers and professional sales staff, committed to providing high-quality products and reliable services.

We focus not only on product quality but also on excellent after-sales support, which has earned us strong recognition and trust from our clients worldwide. Our service teams have been sent overseas multiple times to assist with product installation and adjustment. To date, our machines have been exported to more than 20 countries.Main Products:

Light Gauge Steel Framing Machine
Roof Roll Forming Machines
Roller Shutter Door Roll Forming Machines
lC and Z Purlin Roll Forming Machines
Light Keel Roll Forming Machines
Slitting Machines

FAQ

Training & Installation

1. On-site installation service is available (reasonable service fees apply).

2. Quality testing (QT) is welcome and handled professionally.

3. Operation manuals and user guides are provided if on-site service is not requested.

Certification & After-Sales Service

1. All machines meet international technical standards and ISO certification.

2. CE certification available.

3. 12-month warranty from the date of delivery.

Our Advantages

1. Short delivery times.

2. Efficient communication.

3. Customized interface and design solutions.

Looking for a reliable Glazed Tile Roof Sheet Forming Machine manufacturer and supplier? At RollMac, we provide high-quality machines at competitive prices, backed by guaranteed performance and strong after-sales support. Feel free to contact us for more details.
