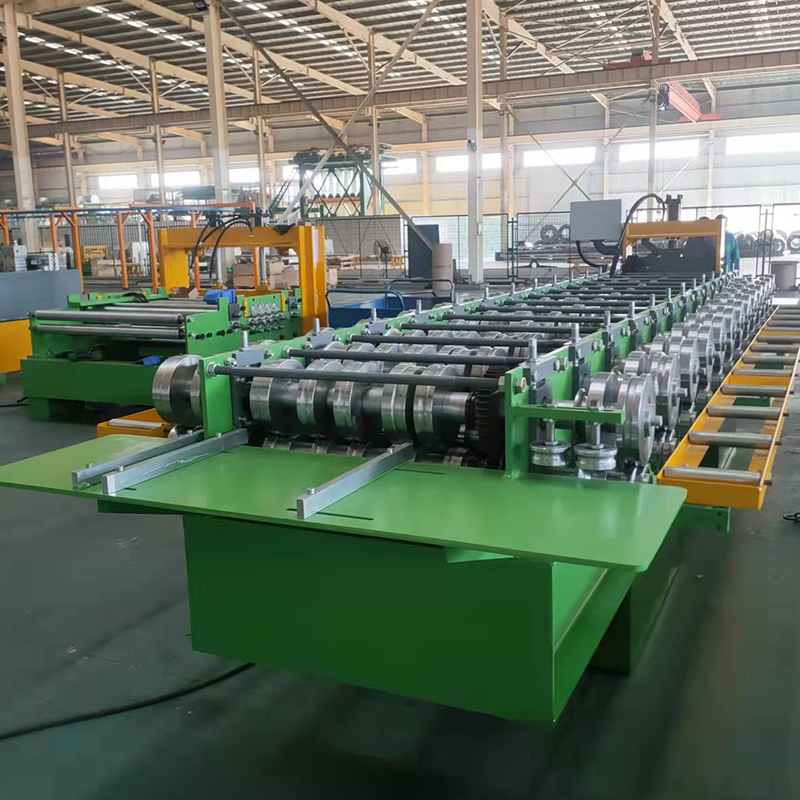

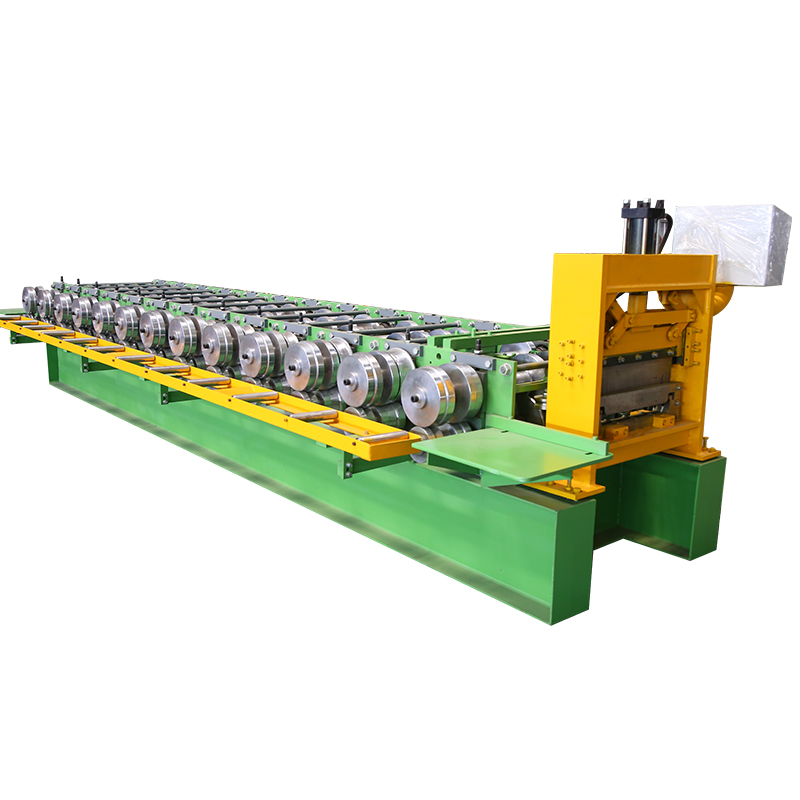

Standing Seam Machine

Our standing seam roof machine produces premium-quality panels with precision and efficiency. Operating at speeds between 8 and 20 meters per minute, it ensures fast and reliable production. Equipped with multiple patented technologies, this machine meets the highest industry standards and comes with recognized certifications.

Availability:

Quantity:



Inquire

Product Description

0.5-0.8mm/0.7-1.2mm

Thickness Range for both steel and aluminum

20m/min

Production Speed

5.8m × 1.6m × 1.4m

Dimensions L x W x H

Weight	1600KGS
Voltage	380V/50HZ/3PH
Motor Power	4KW
Servo Motor Power	2KW
Hydraulic Power	2.2KW
Forming Steps	3steps
Curving Speed	8-16m/min
Curved Thickness for Steel Roof	0.7-0.9mm
Curved Thickness for Aluminum Roof	0.9-1.2mm
Width of Straight Roof to Curved	300mm to 600mm
Max. Width of Tapered Roofing to Curved	500mm
Min. Width of Tapered Roofing to Curved	250mm
Min. Curved Radius for Aluminum Roofings	Convex Curved 2 meters, Concave Curved 6 meters
Min. Curved Radius for Steel Roofings	Convex Curved 6 meters, Concave Curved 10 meters
Min. Curved Radius for Tapered Roofings	Convex Curved 10 meters, Concave Curved 12 meters
Material of shaft	40Cr steel, plated hard chrome on the surface of rollers
Material of roller	45#steel with hard chrome plating
Material for frame of machine	Fine welded structural steel

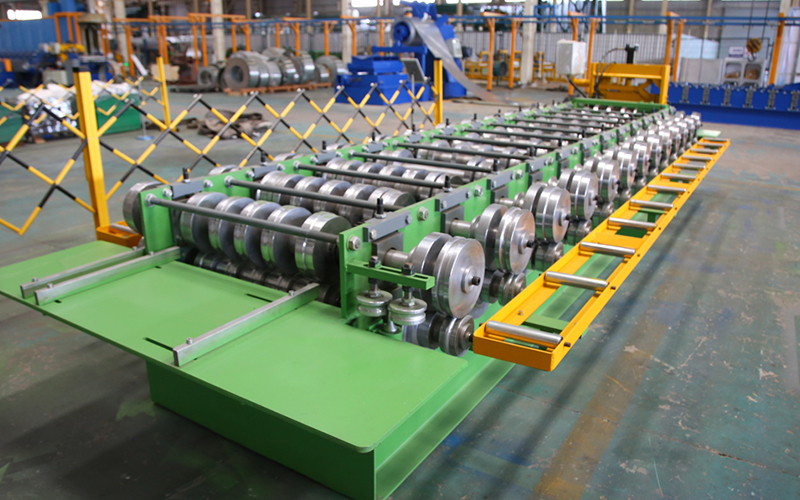

Hand Wheel Feed Platform

The Hand Wheel Feed Platform is a key part of our roll forming machine, providing operators with precise control over material feeding. This ensures accurate alignment and smooth, efficient production, making it ideal for high-quality roll forming applications.

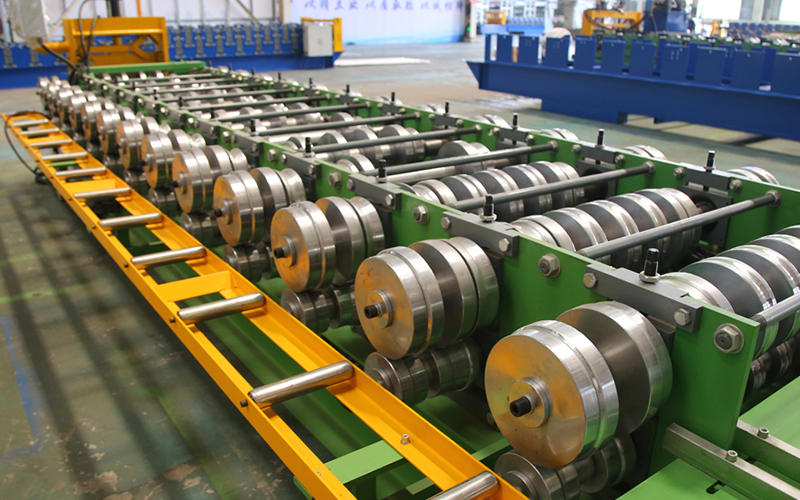

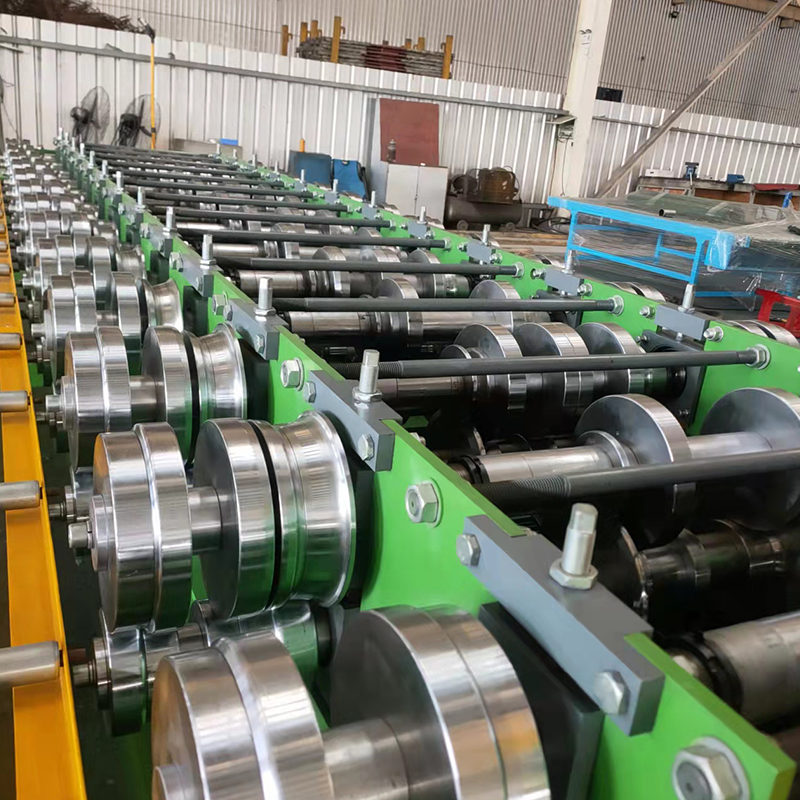

Roller System

Material of rollers: 45# steel, Roller station: 13 rows.

Thickness of feeding material: Q235-Q345(steel):0.5-0.8m，（Al-Mg-Mn):0.7-1.0mm/0.9-1.2mm

Available straight and tapered profile in one machine.

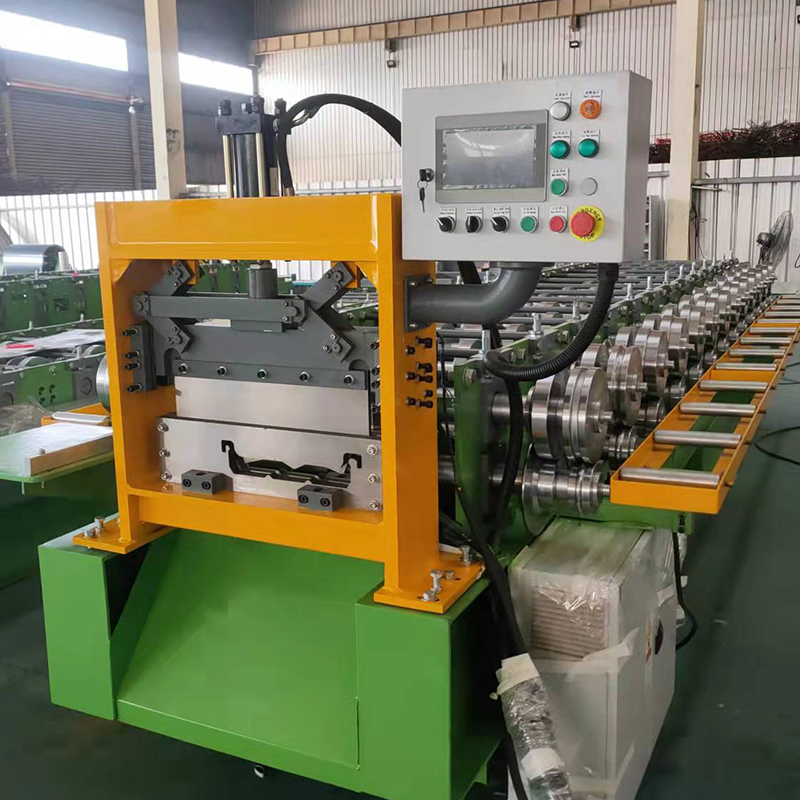

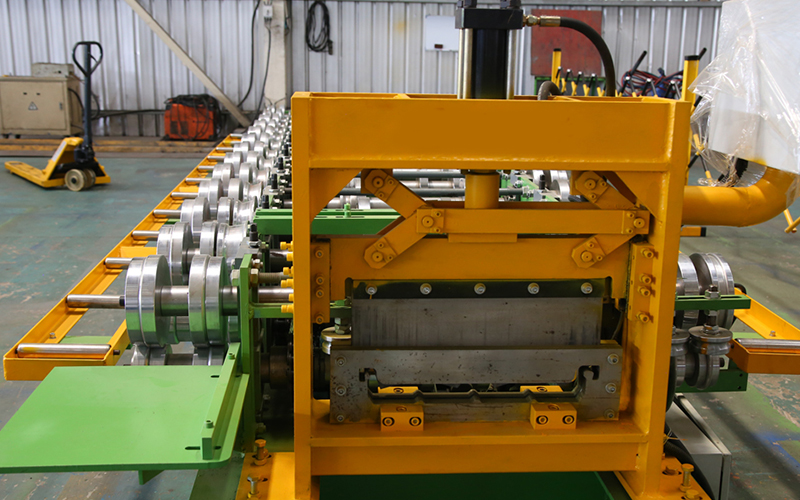

Cutting System

Our roll forming machine features a high-quality cutting system made from quenched Cr12MoV steel, ensuring durability and precision. The system allows for accurate panel length adjustments, controlled by a hydraulic drive and integrated PLC computer system, delivering efficient and consistent cutting performance.

Type	YX65-400	YX65-430
Material Width	575-578mm	600-603mm
Height of Roofing	65mm	65mm
Effective Width	400mm	430mm
Thickness for steel	Q235-Q345(steel):0.5-0.8mm
Thickness for aluminum	（Al-Mg-Mn):0.7-1.0mm/0.9-1.2mm
Forming steps	13Steps
Dimension	580016001400mm
Motor Power	7.5KW*2 sets
Hydraulic Power	2.2KW
Forming Speed	8-20m/min
Voltage	380V/50HZ/3PH
Weight	7000KGS
Control System	PLC Control
Control System	1set, PLC (Delta), Touch Screen (SCHNEIDER), Inverter (Delta), Encoder (Omron)
Material of rollers	45# steel	45# steel
Configure	Machine、3Pcs Run Out Table、 5 Tons Manual Uncoiler、 Auto Seamer、Hand Seamer

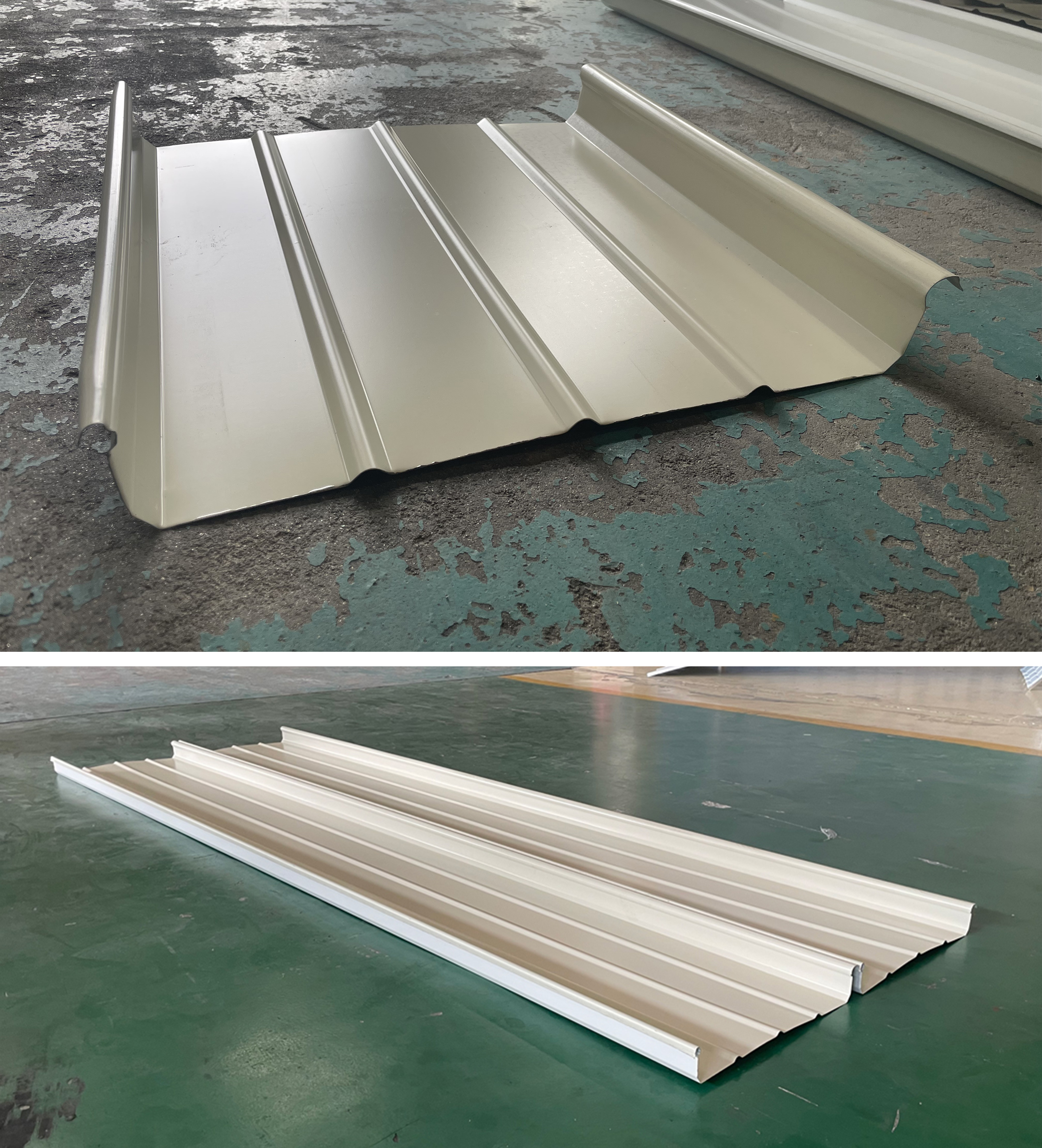

What is a Standing Seam Roof?

A standing seam metal roof is a type of concealed fastener roofing system, characterized by vertical or trapezoidal raised seams with flat panels in between. Also known as a standing rib roof, it features distinctive seams that run vertically along the panel surface, adding extra rigidity and structural support. This design makes it a popular choice for both residential and commercial buildings.

One of the main advantages of a standing seam roof is its hidden fastener system. With fasteners concealed beneath the seams, issues related to exposed screws or nails are minimized. Additionally, standing seam roofs can be engineered to accommodate solar panels or snow retention systems, thanks to the roof’s durable and high-performing metal structure. These features make it ideal for homeowners and businesses looking for long-lasting, versatile roofing solutions.

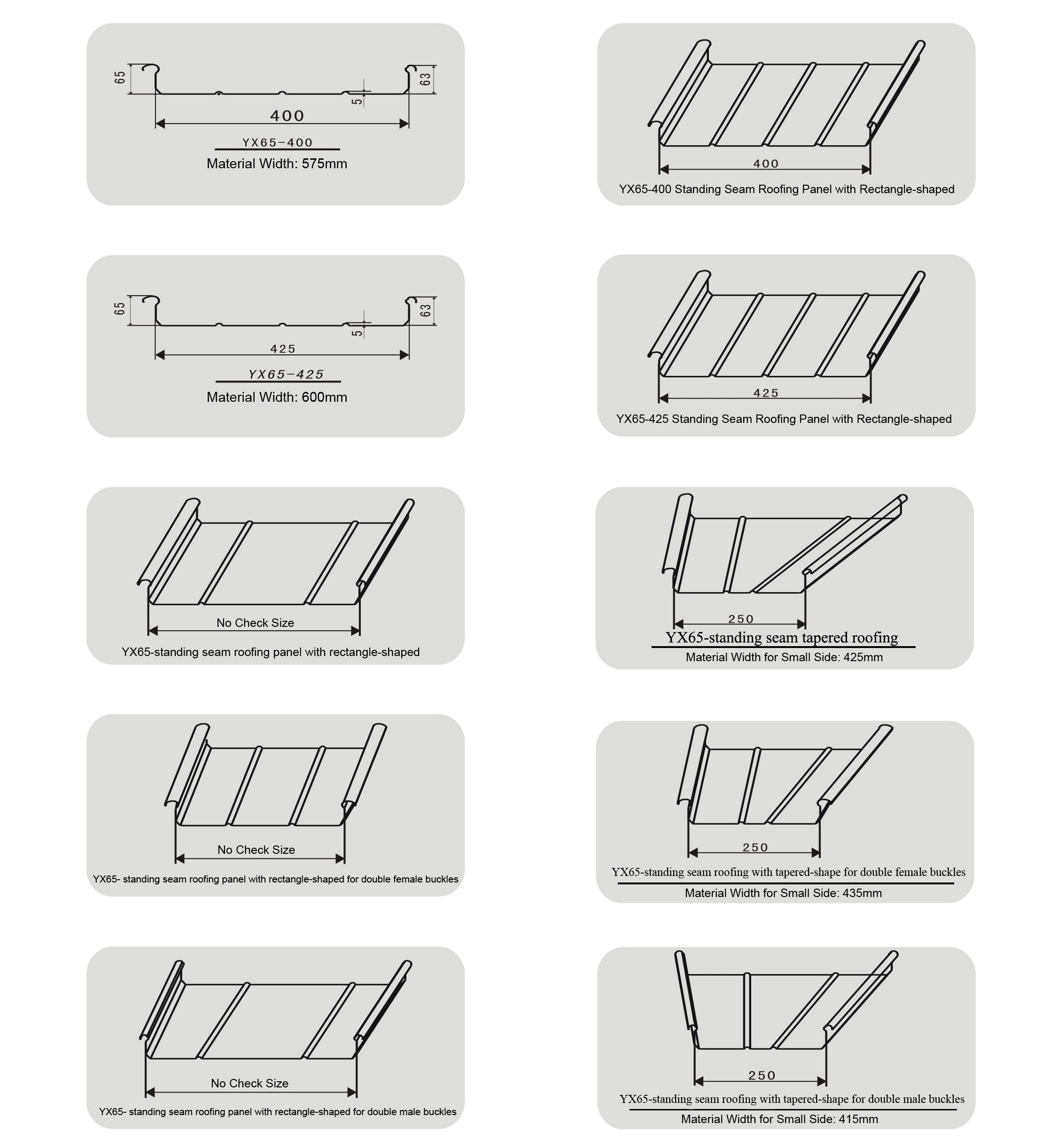

Standing Seam Roof Profile Drawings

After-Sales Service for Standing Seam Metal Roof Panel Machine

1. Installation and Training

· On-site at our factory: Buyers visiting our factory can inspect the machine and receive face-to-face training on operation and maintenance for themselves and their technicians.

· Remote guidance: For those unable to visit, we provide detailed user manuals and instructional videos to guide installation and operation.

· On-site technician support: If needed, our technician can travel to your facility. Buyers are requested to provide board, lodging, and other necessary arrangements.

2. After-Sales Support

· One-year warranty: Our standing seam roll forming machine comes with a full one-year guarantee.

· 24/7 technical assistance: Support is available via email or phone around the clock.

· Free repairs: Any machine issues occurring within the first year will be repaired free of charge.
