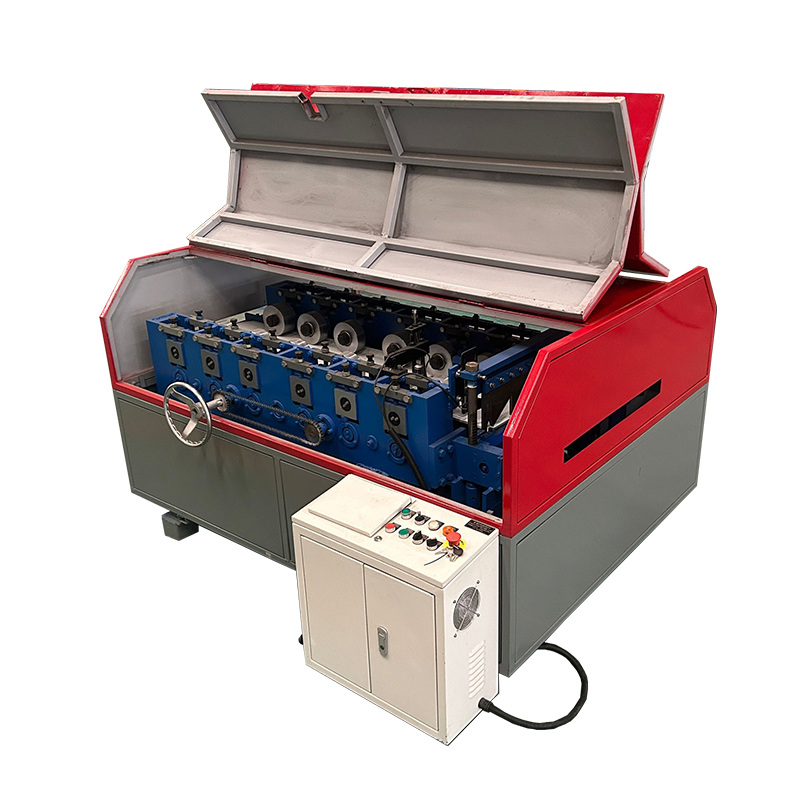

Portable Standing Seam Roll Forming Machine

The portable standing seam roofing system is a specialized technology created to prevent water from penetrating the roof panels. This is achieved through its unique interlocking panel design. When installed, the panels overlap tightly, leaving no gaps where water could enter.

Availability:

Quantity:



Inquire

Product Description

0.5-0.8MM

Thickness Range

15m/min

Production Speed

1.8m × 1.2m × 1m

Dimensions L x W x H

Adjustable Width

The machine offers a quick, infinitely adjustable workpiece width ranging from 220 mm to 530 mm. By simply rotating the handle, the carriages — along with the profiling rollers — move synchronously, allowing for fast and precise width adjustments.

Easy Operation

Portable standing seam roof panel machines are designed for user-friendly operation, requiring minimal technical skills or training. This enables workers to quickly learn and begin using the machine efficiently.

Versatility

Portable standing seam roofing machines can process a wide range of metal materials, including galvanized steel, pre-painted steel, and aluminum, making them suitable for various project requirements.

Model	KSL25-220-530	KSL38-220-530
Material Width	290-600mm	290-600mm
Height of Roofing	25mm	38mm
Effective Width	220-530mm	220-530mm
Thickness for steel	0.5-0.8mm	0.5-0.8mm
Thickness for aluminum	0.7-1.2mm	0.7-1.2mm
Forming steps	6Steps	8steps
Dimension	180012001000mm	200011001200mm
Motor Power	1.5KW	2.2KW
Hydraulic Power	0.75KW	0.5KW
Forming Speed	8-15m/min	6-8m/min
Weight	150KGS	1500KGS
Control System	PLC Control	PLC Control
Material of rollers	45# steel	45# steel

RollMac’s portable roof panel, wall panel, and gutter machines are renowned worldwide as some of the highest-quality portable rollforming machines available. These versatile rollformers can be taken directly to the job site for on-site production or used as stationary equipment in a factory setting.

By bringing rollforming in-house, you gain greater control over your production process and enjoy key benefits such as:

· Shorter lead times for projects

· Higher efficiency and productivity

· Less material waste and scrap

· Lower carbon footprint through reduced transportation

· Custom engineering for both roof and wall panels

· Expert technical support and hands-on training

· Eligibility for weathertight warranties

With RollMac rollforming machines, you can streamline operations, improve quality, and deliver faster results to your customers.
