1.2-3.0mm
Thickness Range
8-25m/min
Production Speed
8.5m × 1.6m × 1.5m
Dimensions L x W x H

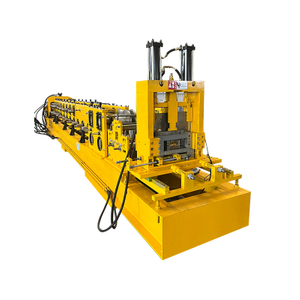

Benefits of the Automatic Size-Change C Purlin Machine

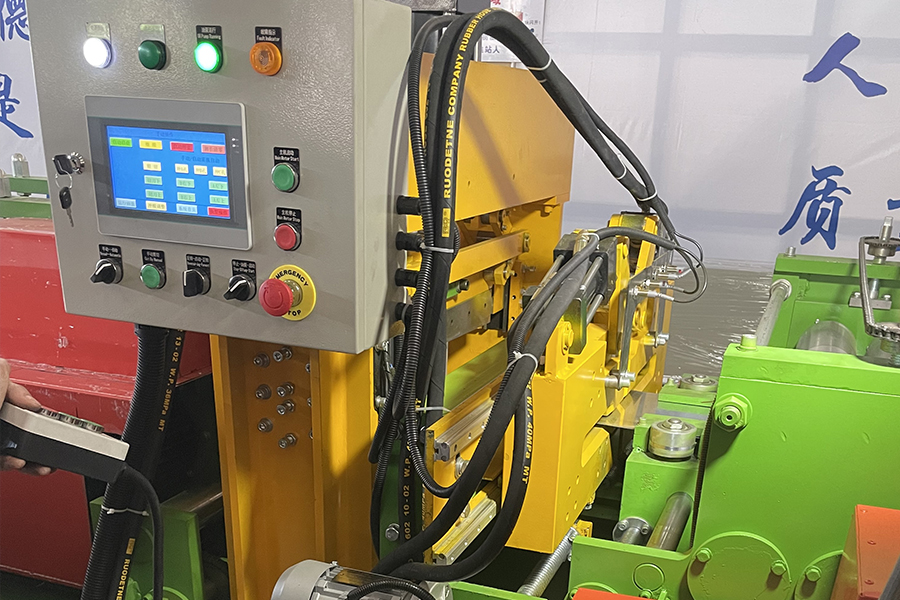

Automatic size adjustment:
Purlin width and height can be changed automatically via the intelligent control system, eliminating manual adjustments and ensuring precise, consistent output

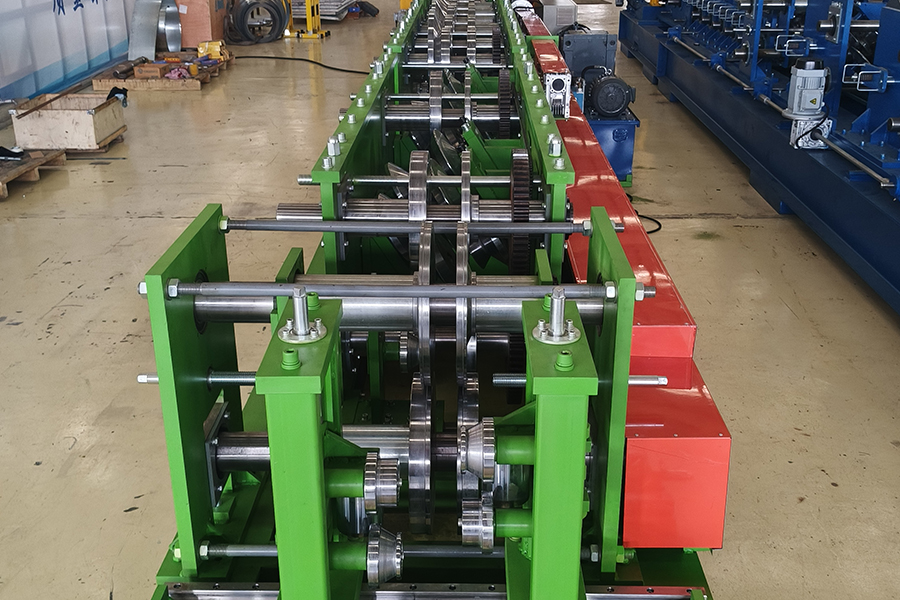

High-Strength Structural Design:
The main frame of the roll forming machine is built using high-strength cold-rolled steel plates, ensuring uniform wall thickness and excellent compressive strength for long-term durability and stability in high-load production environments.

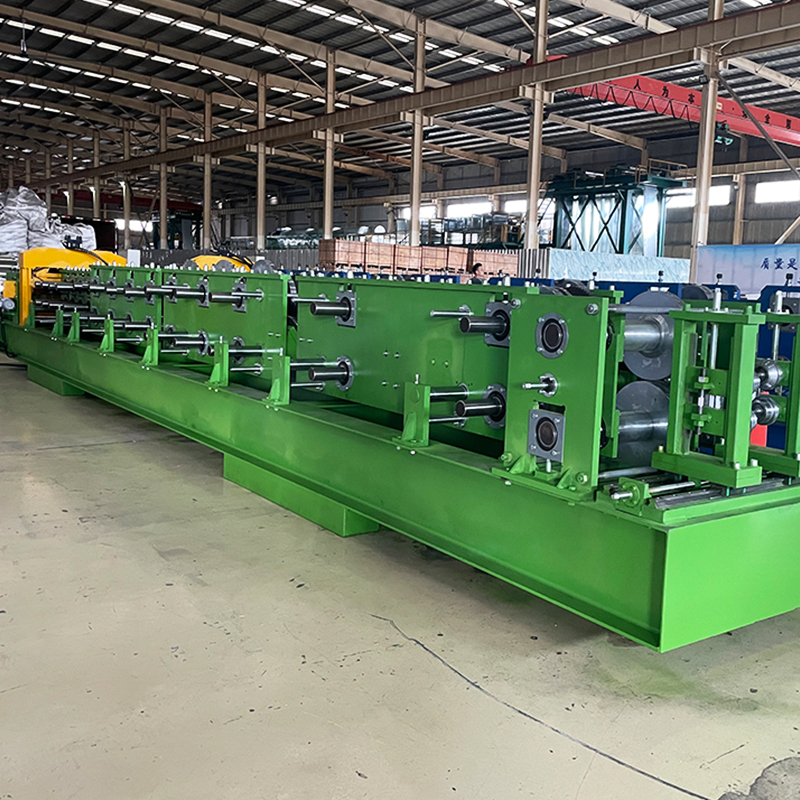

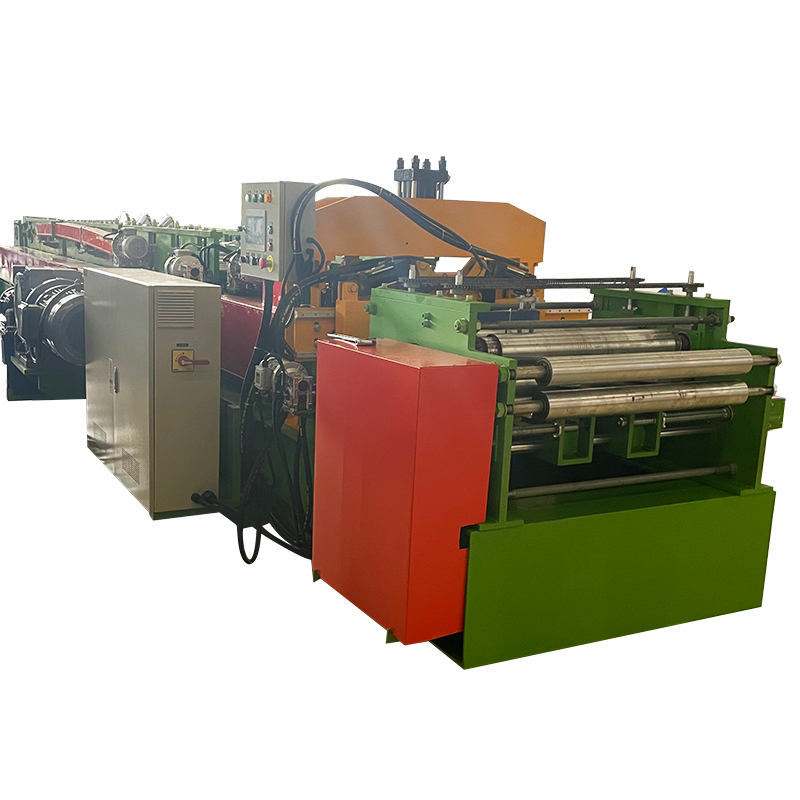

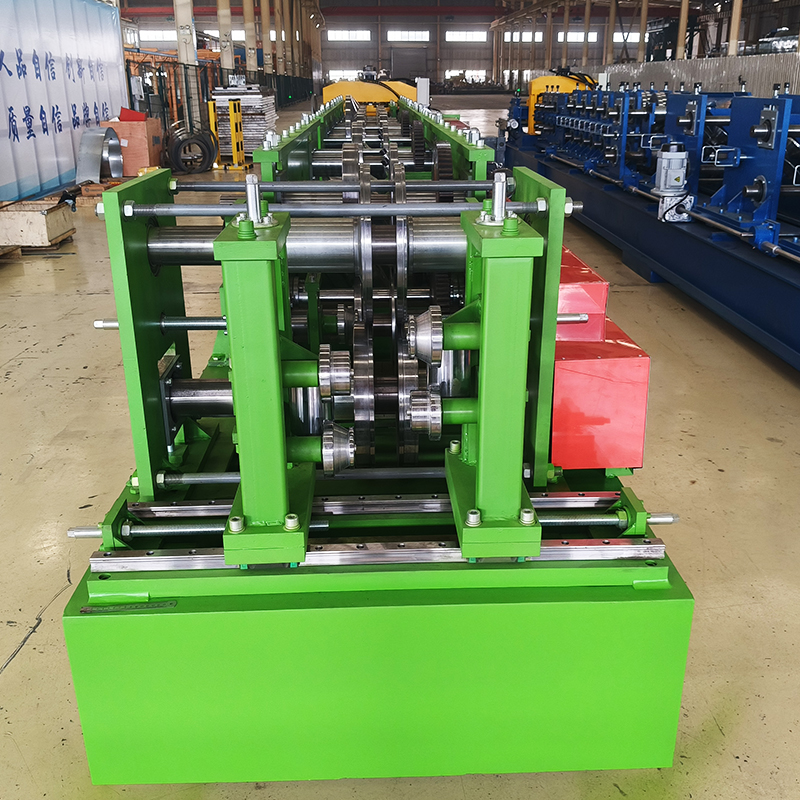

High-Speed Z Purlin Production:
RollMac’s Z purlin roll forming machines deliver impressive production speeds up to 25 meters per minute, depending on the material thickness and profile size. This ensures high-efficiency output, making them ideal for large-scale construction and industrial projects.
Item | Auto Adjustable Purlin Making Roll Forming Machine |
Dimensions | 8500 * 1600 * 1500mm |
Weight | 7500KG |
Motor power | 30KW |
Oil pump power | 5.5KW |
Voltage | 380V/3-phase/60Hz |
Forming step | 19 |
Forming speed | 8-25m/min |
Forming thickness | 1.2-3.0mm (GI) |
Effective width | 120-300mm |
Effective height | 45-100mm |
edge width | 10-20mm |
Applications of Z Purlins
Z purlins are widely used across the construction industry due to their high strength, versatility, and cost-efficiency. Below are the key areas where Z purlins play a critical role:
1. Roofing Support Systems
Z purlins serve as secondary structural members in roof frameworks, providing essential support for roof panels and helping to distribute loads evenly.
2. Wall Cladding Support
In wall assemblies, Z purlins function as horizontal framing elements that support cladding sheets, improving the overall rigidity and structural stability of the building.
3. Industrial Buildings
Commonly used in factories, warehouses, and production facilities, Z purlins are valued for being lightweight yet strong, ideal for long-span constructions.
4. Agricultural Structures
Z purlins are used in barns, storage units, and livestock shelters, offering excellent corrosion resistance and durability in harsh outdoor environments.
5. Prefabricated and Modular Buildings
Z purlins are a preferred component in prefab construction thanks to their easy installation, light weight, and ability to support fast-paced building timelines.
